do88 VAG MQB 1.8 / 2.0 TSI Intercooler Pressure Pipes

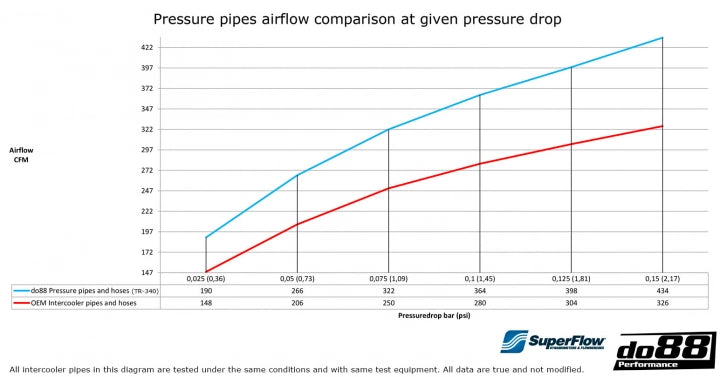

The OEM charge pipes on the MQB 1.8/2.0 TSI are far from optimal from an airflow standpoint, with several narrow, tight, flow-reducing bends throughout the system. do88's charge pipe kit is significantly bigger with smooth transitions, offering considerably better airflow and durability compared to stock, verified through both in-car testing and on do88's own SuperFlow SF-1020 flow bench.

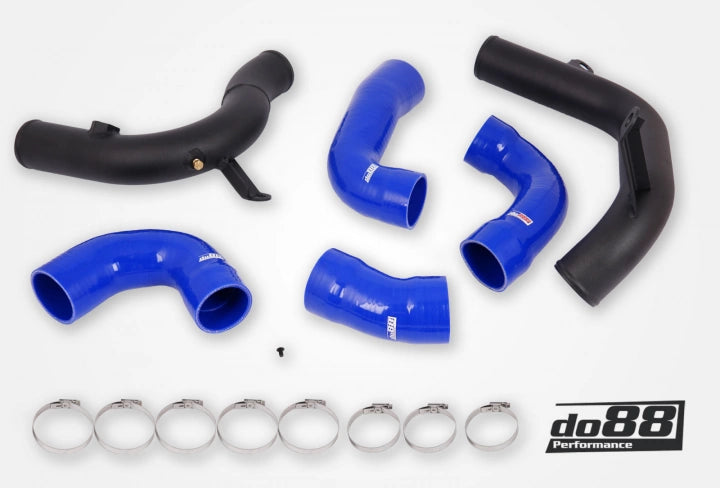

Every pipe and hose needed to and from the intercooler is included in the kit. A large mandrel-bent aluminium pipe replaces the OEM's restrictive hot-side section, and a cast aluminium charge pipe runs the full length from the intercooler outlet to the throttle body on the cold side, genuinely eliminating potential leak points found in the factory design. A CNC-machined 1/8-27 NPT connection is included for methanol injection or a boost pressure sensor, supplied with a blanking plug if not in use. All hoses are reinforced to handle high boost pressures and temperatures, with a stepped inner design at pipe connections to reduce turbulence.

Please select all options at checkout:

• Intercooler match: for use with do88's own Performance Intercooler (ICM-300), or for use with the factory OEM intercooler

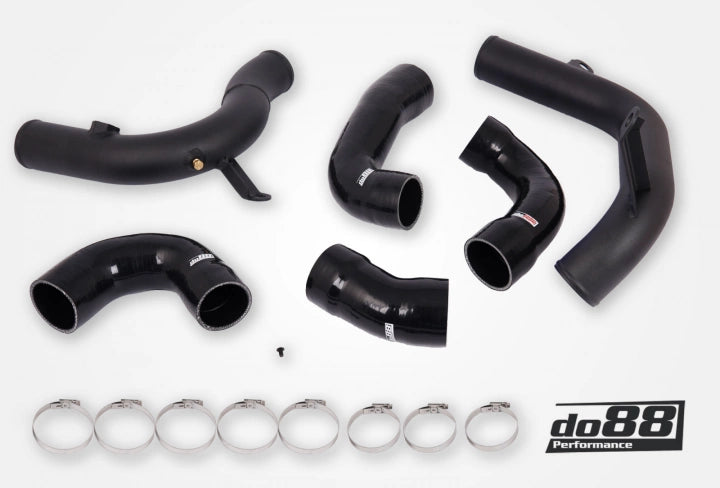

• Finish: black or blue, no performance difference between colours, purely a styling choice

Why Choose This Charge Pipe Kit

• Significantly larger, smoother-transitioning design than the restrictive OEM pipes
• Verified airflow improvement on both in-car and flow bench testing
• Cast aluminium cold-side pipe eliminates potential OEM leak points
• CNC-machined 1/8-27 NPT port for methanol injection or a boost sensor
• Hoses reinforced for high boost pressure and temperature
• Two genuine configuration choices to precisely match your build

Compatibility

• VW Golf (Mk7/Mk7.5, 2013-2020, GTI/R/Clubsport/ED40, 1.8/2.0 TSI)
• VW Passat (3G, 2015+, 1.8/2.0 TSI)
• VW Tiguan (Mk2, 2016+, 2.0 TSI)
• VW Arteon (2017+, 2.0 TSI)
• VW Jetta GLI (Mk7, 2019+, 2.0 TSI)
• Audi A3/S3 (8V, 2012-2020, 1.8/2.0 TFSI)
• Audi TT/TTS (8S, 2015+, 1.8/2.0 TFSI)
• SEAT León Cupra/Cupra R (Mk3, 5F, 2013+, 1.8/2.0 TSI)
• Skoda Octavia VRS (Mk3, 5E, 1.8/2.0 TSI)
