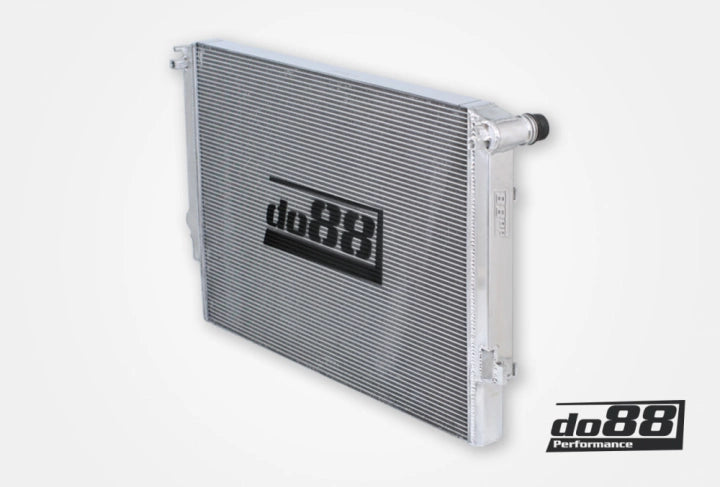

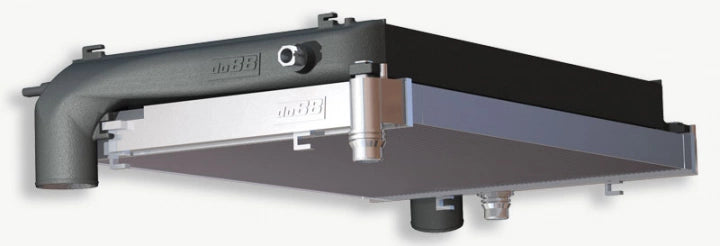

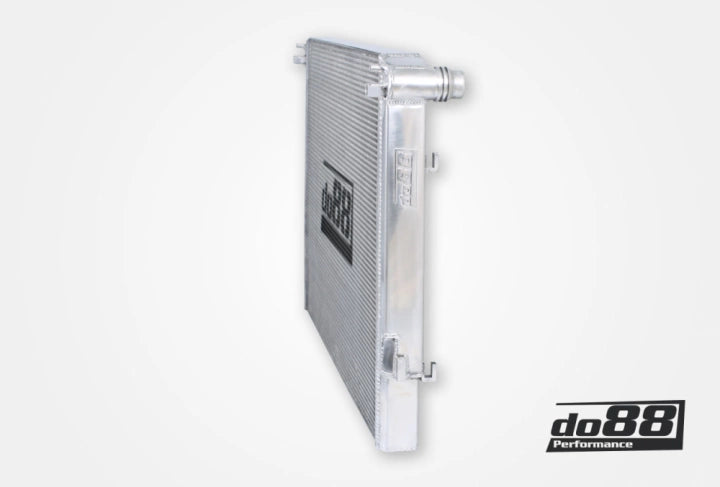

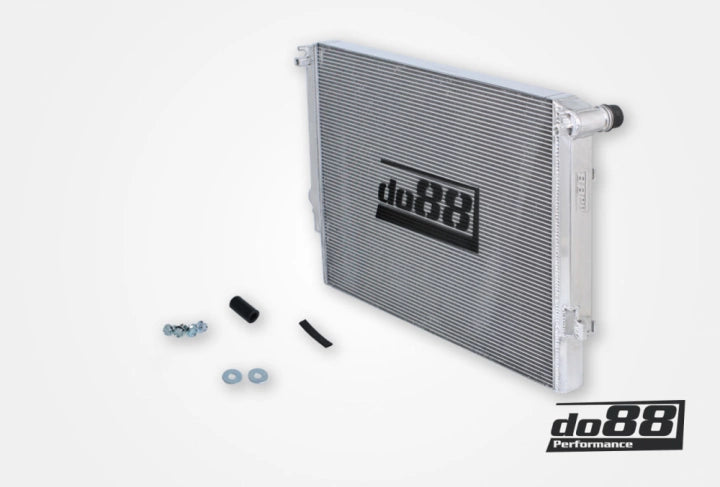

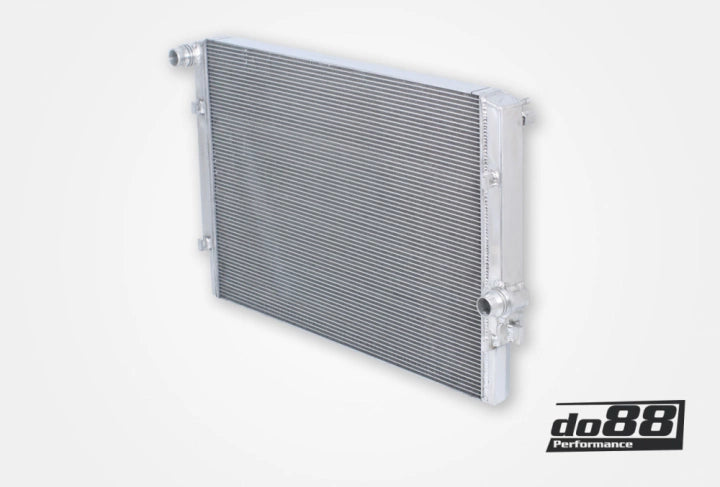

do88 VAG MQB 1.8 / 2.0 TSI Front Mount Radiator

No more cracked plastic tanks, choose do88 today. This self-developed performance radiator is constructed to deliver the best cooling efficiency during tough conditions, exclusively manufactured in aluminium with uninterrupted welds to guarantee genuine reliability and endurance when you really need it.

The numbers: a 28% larger core volume than the original (12,893cm³ versus 10,100cm³), using a genuine triple-pass design, water is controlled so it passes through the radiator core three times, maximising contact time with the cooling fins for the lowest achievable outlet temperature. A high-efficiency, dual-core design with a 2-row, 42mm thick core uses 5mm fin height multi-louvered fins for genuinely improved heat rejection. This radiator is immensely optimised to the available space for an easy drop-in fitment, the undoubted choice for the inspired enthusiast or race car driver demanding reliability at the limit.

Fitment notes:

• Does not fit the VW Arteon R (320hp)
• VW Tiguan Mk2: the hot side hose must be shortened towards the pressure hose, a tight fit
• Audi A3/S3 8V, Audi TT/TTS 8S, SEAT León/Cupra Mk3, SEAT Ateca/Cupra Mk1, Skoda Octavia/VRS Mk3: the plastic radiator/intercooler support frame will need trimming or modification

Works with: OEM mounting points, see installation instructions for your specific application.

Why Choose This Radiator

• 28% larger core volume than the original unit
• Genuine triple-pass design, water crosses the core three times for the lowest outlet temperature
• Dual-core, 2-row, 42mm thick design with 5mm multi-louvered fins
• 100% aluminium construction with uninterrupted welds, eliminates cracked plastic tank risk
• Genuinely optimised to the available space for drop-in fitment on most applications

Compatibility

• VW Golf (Mk7/Mk7.5, 2013-2020, GTI/R/Clubsport/ED40, 1.8/2.0 TSI)
• VW Passat (3G, 2015-2024, 1.8/2.0 TSI)
• VW Tiguan (Mk2, 2016-2023, 2.0 TSI) - hot side hose shortening required
• VW Arteon (2017-2023, 2.0 TSI) - does not fit Arteon R (320hp)
• VW Jetta GLI (Mk7, 2019+, 2.0 TSI)
• Audi A3/S3 (8V, 2012-2020, 1.8/2.0 TFSI) - support frame trimming required
• Audi TT/TTS (8S, 2015-2023, 1.8/2.0 TFSI) - support frame trimming required
• SEAT León/Cupra (Mk3, 2013-2020, 1.8/2.0 TSI) - support frame trimming required
• SEAT Ateca/Cupra (Mk1, 2016+, 1.8/2.0 TSI) - support frame trimming required
• Skoda Octavia/VRS (Mk3, 2013-2020, 1.8/2.0 TSI) - support frame trimming required
• Skoda Superb (B8, 2015-2023, 1.8/2.0 TSI)
