do88 VAG 2.0 TSI EA888 Gen4 Intercooler Pressure Pipes

The OEM charge pipes on the EA888 Gen4 are far from optimal from an airflow standpoint, with several narrow, tight, flow-reducing bends throughout the system. do88's charge pipe kit is significantly bigger with smooth transitions, offering considerably better airflow and durability compared to stock, verified through both in-car testing and on do88's own SuperFlow SF-1020 flow bench.

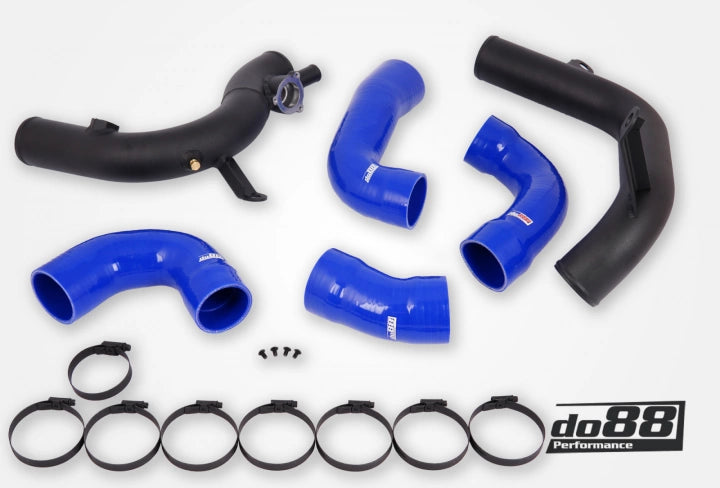

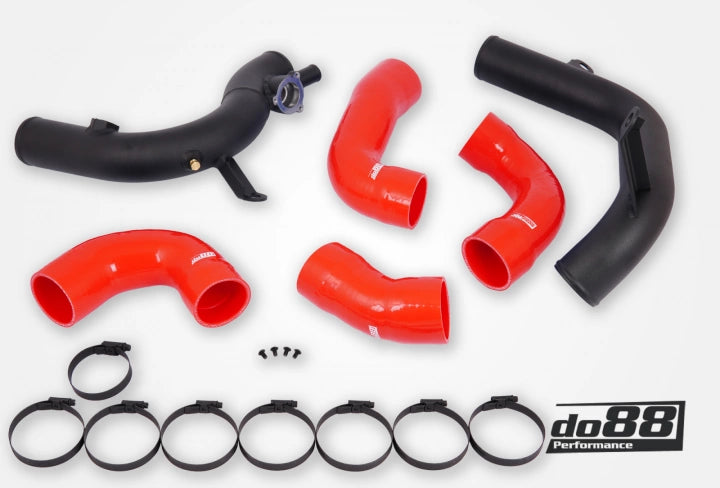

Every pipe and hose needed to and from the intercooler is included in the kit. A large mandrel-bent aluminium pipe replaces the OEM's restrictive hot-side section, and a cast aluminium charge pipe runs the full length from the intercooler outlet to the throttle body on the cold side, genuinely eliminating potential leak points found in the factory design. A CNC-machined 1/8-27 NPT connection is included for methanol injection or a boost pressure sensor, supplied with a blanking plug if not in use. All hoses are reinforced to handle high boost pressures and temperatures, with a stepped inner design at pipe connections to reduce turbulence.

Please select all three options at checkout:

1. Power output: 300hp or 245hp variant, matched to your car's specific EA888 Gen4 tune
2. Intercooler match: for use with do88's own Performance Intercooler, or for use with the factory OEM intercooler
3. Finish: red, black, or blue, no performance difference between colours, purely a styling choice

Why Choose This Charge Pipe Kit

• Significantly larger, smoother-transitioning design than the restrictive OEM pipes

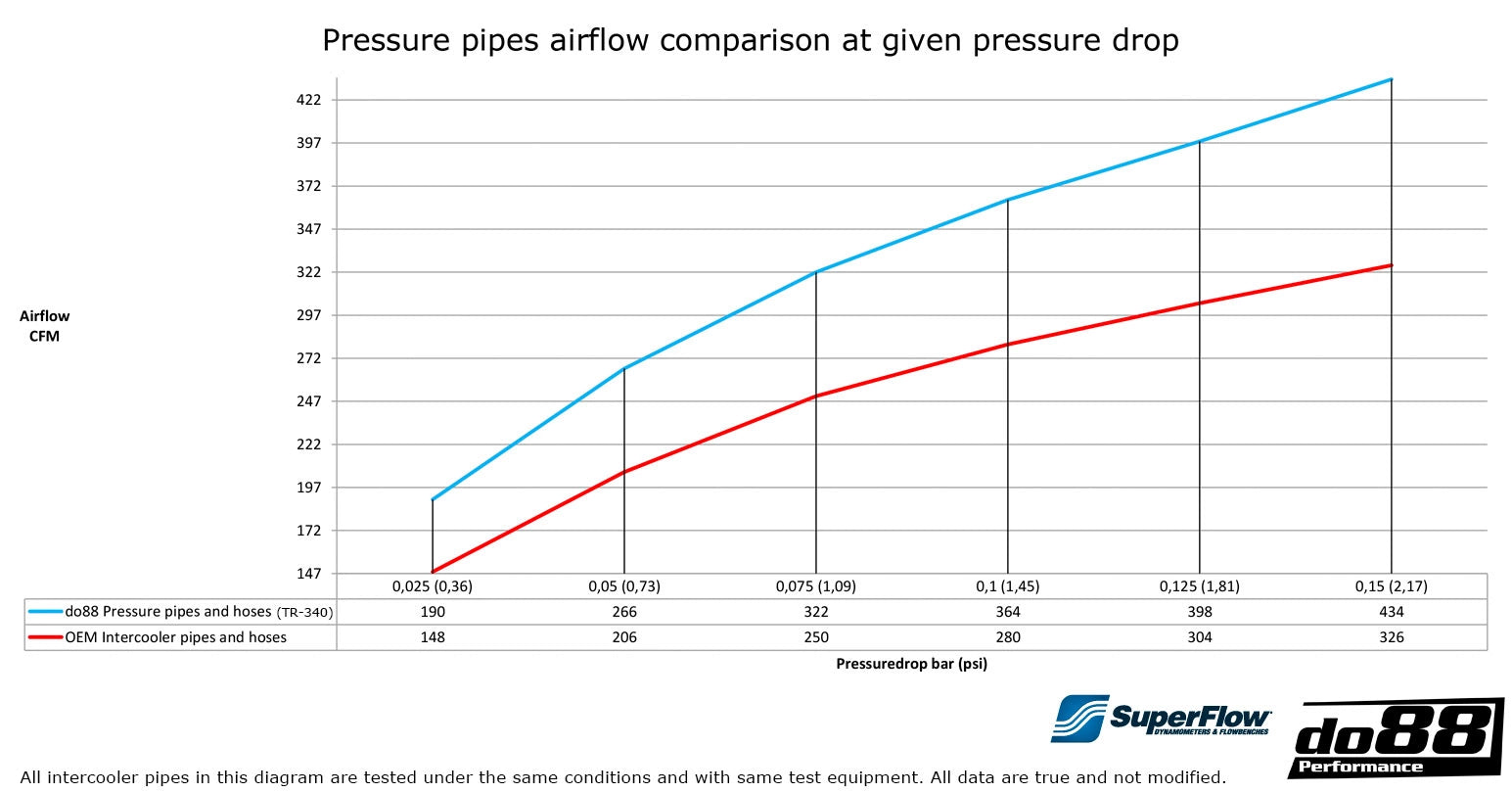

• Verified airflow improvement on both in-car and flow bench testing
• Cast aluminium cold-side pipe eliminates potential OEM leak points
• CNC-machined 1/8-27 NPT port for methanol injection or a boost sensor
• Hoses reinforced for high boost pressure and temperature
• Three genuine configuration choices to precisely match your build

Compatibility

• VW Golf (Mk8, GTI/R/Clubsport/ED45, 2.0 TSI EA888 Gen4, 245hp or 300hp variant)
• Audi A3/S3 (8Y, 2.0 TSI EA888 Gen4, 245hp or 300hp variant)
• SEAT León (Mk4, 2.0 TSI EA888 Gen4)
• Skoda Octavia RS (NX, 2.0 TSI EA888 Gen4)
• Cupra Formentor (5FF, 2.0 TSI EA888 Gen4)

Confirm all three options at checkout: power output (300hp/245hp), intercooler match (do88/OEM), and finish (red/black/blue).
