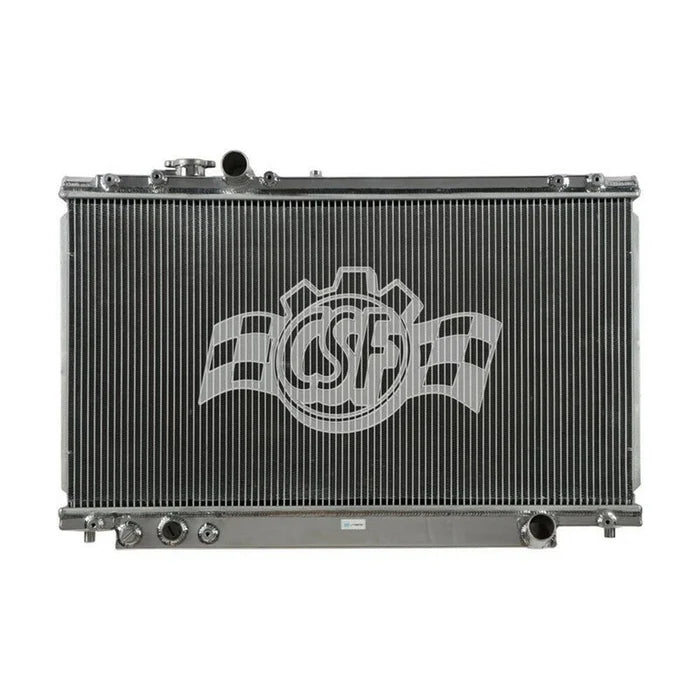

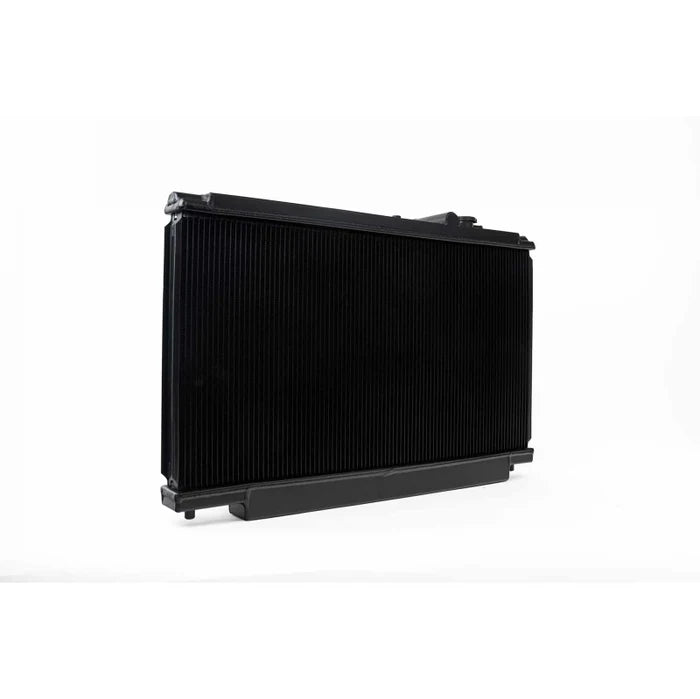

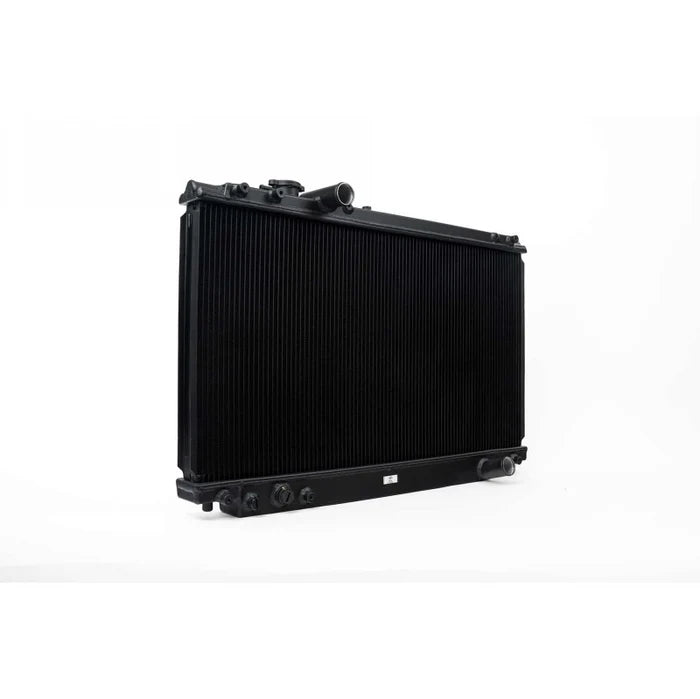

CSF Toyota Supra MK4 1993-1998 High-Performance Radiator

CSF has over 5 decades of experience manufacturing radiators, so when it comes to keeping your engine cool and your MK4 Supra running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for high-horsepower and high-boost Supras alike, trusted by some of the best-known names in Supra tuning, and equally at home on track, on the street, drifting, or drag racing.

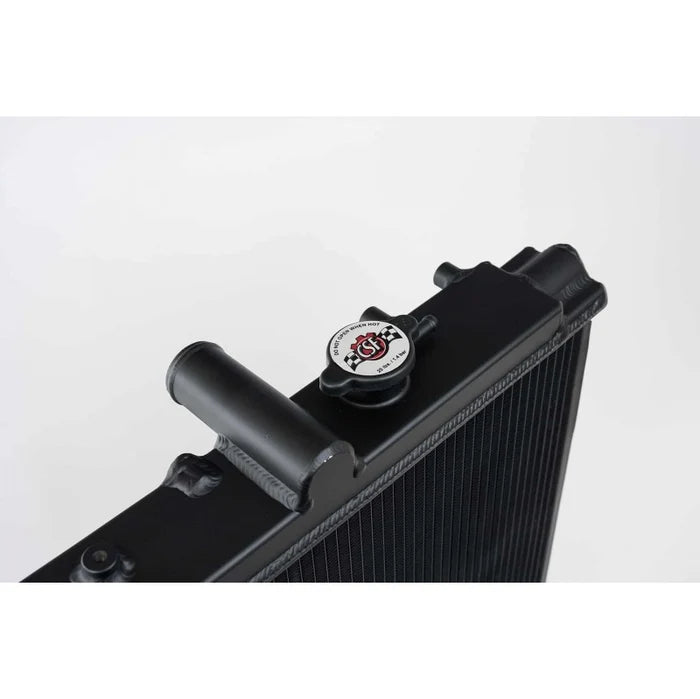

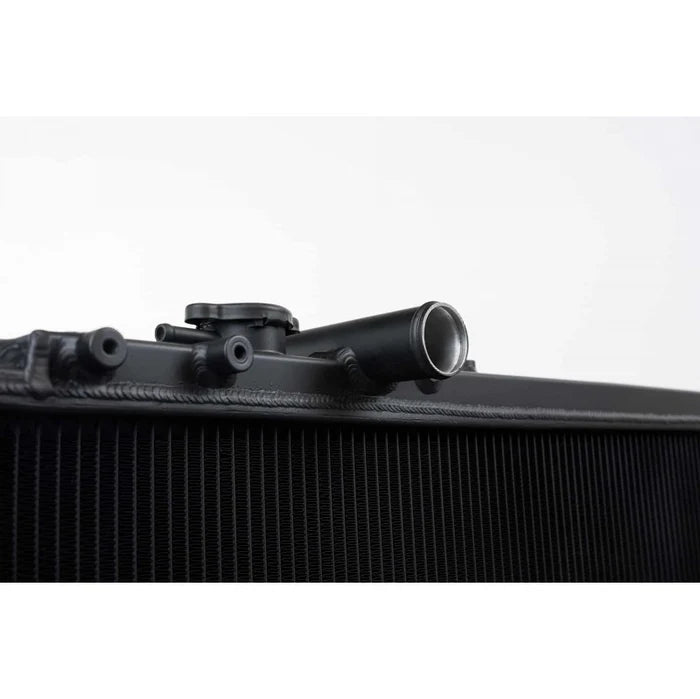

The 2-row, 42mm dual core uses CSF's exclusive B-Tube technology. Rather than a regular oval "O"-shaped tube, CSF uses a specially engineered tube shaped like a "B", carefully formed and brazed over the seam to seal. This design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, producing the efficiency of two smaller tubes versus one large tube within the same space, delivering genuine dual liquid laminar flow. CSF is able to use thinner, lighter aluminium with better cooling efficiency because this design is actually stronger than normal welded "O"-shaped tubes. Ultra-efficient, multi-louvered fins with a 6.5mm fin height are carefully and precisely aligned to maximise airflow through the core, with fin specifications calculated and wind-tunnel tested for this specific application. The radiator includes a high-performance aluminium 1.4bar pressure cap with an embossed CSF logo, a machined all-aluminium race-style drain plug, and a genuine one-hour hand-polished mirror finish (or a black finish option for a stealthier look). This is a true drop-in fit requiring no modifications to install, with CNC-machined, welded OE-style brackets and inlet/outlet connections matching the OE connections so you can reuse factory or aftermarket hoses.

Works with: OEM mounting points and hose connections. Manual transmission Supras only.

Why Choose This Radiator

• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• Trusted by some of the best-known names in Supra tuning
• 2-row, 42mm dual core with 6.5mm multi-louvered fins, wind-tunnel tested for this exact application
• Rigorously tested via burst pressure, thermal cycle, vibration, and salt spray testing
• True drop-in fit, no modifications required, reuses OE or aftermarket hoses
• Available in polished (mirror finish) or black

Compatibility

• Toyota Supra MK4/A80 (1993-1998, 2JZ-GTE and 2JZ-GE, manual transmission)

Note: manual transmission only. Confirm automatic transmission fitment separately with your supplier before listing.
