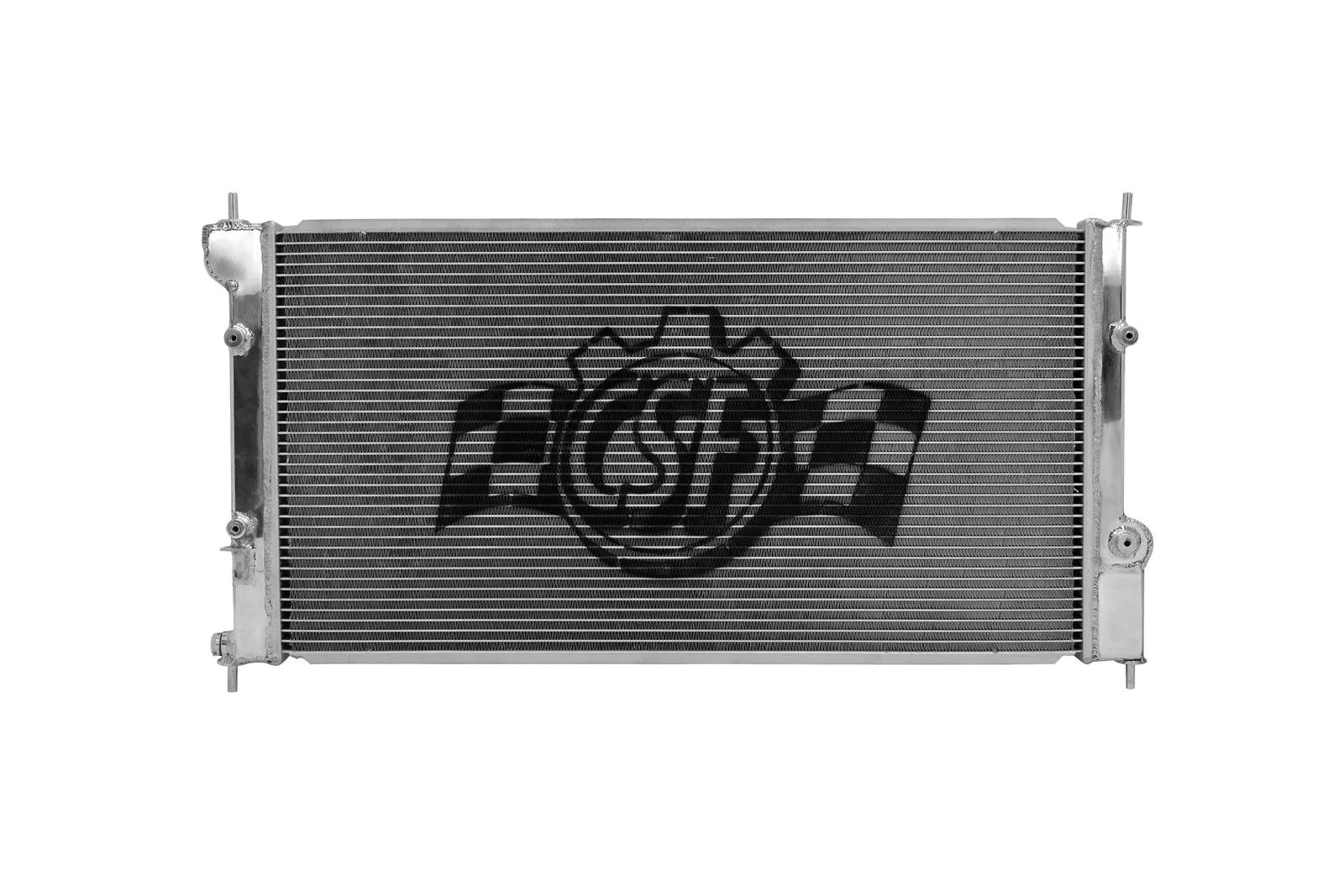

CSF Toyota GT86 / Subaru BRZ High-Performance Radiator

CSF has over 5 decades of experience manufacturing radiators, so when it comes to keeping your engine cool and your FR-S/BRZ/86/GR86 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Now on its second generation, this platform has become a genuine favourite of high-performance enthusiasts and track racers, and this radiator is designed to perform on track, on the street, and drifting, a must-have for high-horsepower builds with built engines and/or the addition of a forced induction system, as well as race vehicles needing added cooling performance in motorsport environments.

The 2-row, 42mm dual core uses CSF's exclusive B-Tube technology. Rather than a regular oval "O"-shaped tube, CSF uses a specially engineered tube shaped like a "B", carefully formed and brazed over the seam to seal. This increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, delivering the efficiency of two smaller tubes versus one large tube within the same space, and allows CSF to use thinner, lighter aluminium with better cooling efficiency, since this design is actually stronger than normal welded "O"-shaped tubes. An ultra-efficient fin with a 6.5mm fin height and multi-louvered design maximises surface area contact, with fin specifications carefully measured and wind-tunnel tested for this specific application. This is a true drop-in fit design requiring no modifications to install, with OE-style brackets all CNC machined and welded for genuine durability, and inlet/outlet connections designed to match the OE connections so you can reuse factory or aftermarket hoses.

Works with: OEM mounting points and hose connections. Fits both manual and automatic transmission across all covered generations.

Why Choose This Radiator

• Single part number covers both first and second generation models, spanning over a decade of production
• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• CNC-machined, welded OE-style brackets for durable, precise fitment
• 6.5mm multi-louvered fins, wind-tunnel tested for this specific application
• Rigorously tested via burst pressure, thermal cycle, vibration, and salt spray testing
• True drop-in fit, no modifications required, reuses OE or aftermarket hoses

Compatibility

• Scion FR-S (2013-2016)
• Subaru BRZ (2013-2020, first generation)
• Subaru BRZ (2022+, second generation)
• Toyota 86 (2017-2020)
• Toyota GR86 (2022+)
