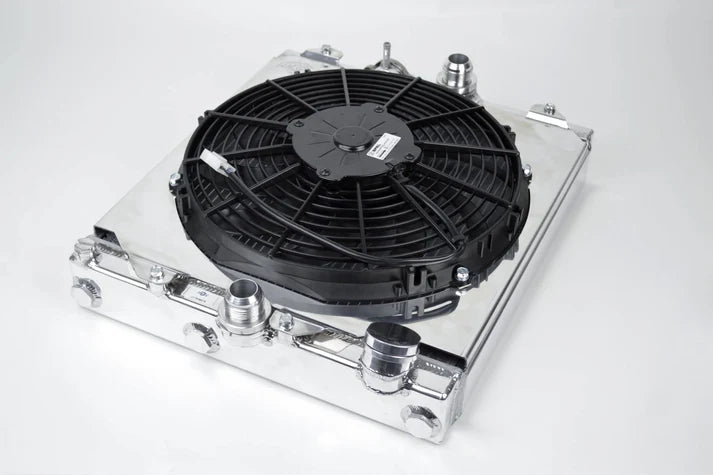

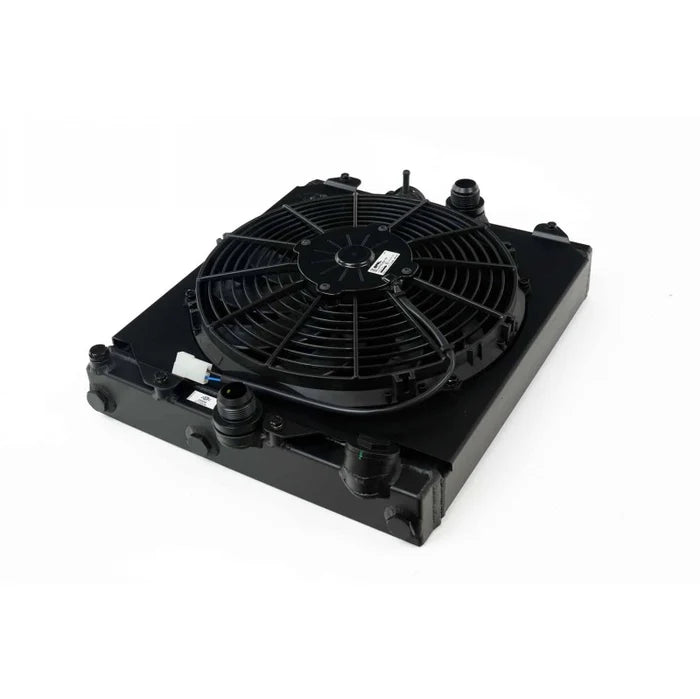

CSF Mitsubishi Evolution 7/8/9 Half Cooling Radiator w/ 12″ SPAL Fan

CSF has created the Ultimate Half radiator with direct fitment for the popular 92-00 Honda Civic platform, and, just as importantly for this application, it also comes with a genuine direct-fitment kit for Mitsubishi Evolution 7/8/9 models. This is the go-to compact solution for Evo owners running large turbos with forward-facing manifolds that simply won't clear a full-size radiator.

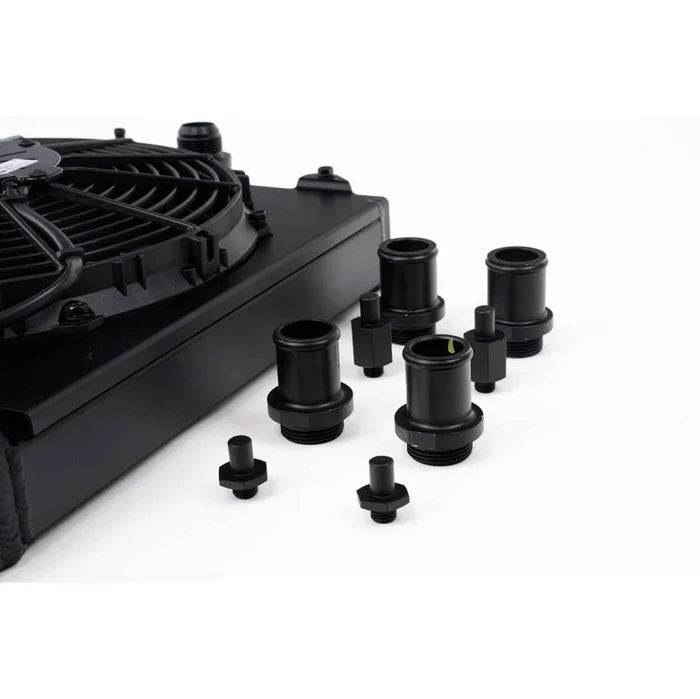

The 2-row, 42mm high-performance core uses CSF's exclusive B-Tube technology, paired with ultra-efficient 6.5mm multi-louvered fins for maximum surface area contact. The installation kit includes both -16AN male connections and 1-3/8in OEM-style slip-on hose connections specific to the Evolution 7/8/9, so you can configure the plumbing to match your exact build. Universal mounting pins in two different lengths, plus multiple mounting pin locations on both top and bottom end tanks, allow for genuinely flexible installation configurations. A dual outlet design opens up multiple plumbing options, and a 1/8 NPT temperature sensor port is included for those wanting to monitor coolant temps directly. The unit comes complete with a fully sealed aluminium fan shroud and a 12-inch SPAL fan, finished with a genuine one-hour hand-polished mirror finish (or satin black for a stealthier look).

Works with: Large forward-facing and twin-scroll turbo setups where a full-size radiator won't clear. Includes both -16AN and Evolution-specific slip-on fittings.

Why Choose This Half Radiator

• Genuine direct-fitment kit specifically for the Mitsubishi Evolution 7/8/9
• Solves clearance issues for large forward-facing and twin-scroll turbo setups
• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• Both -16AN and Evolution-specific slip-on fittings included
• Flexible universal mounting pins and multiple locations for various install configurations
• 1/8 NPT temperature sensor port included

Compatibility

• Mitsubishi Lancer Evolution 7 (2001-2003)
• Mitsubishi Lancer Evolution 8 (2003-2005)
• Mitsubishi Lancer Evolution 9 (2005-2007)

Note: CSF also offers a newer, Evo-specific Half Radiator (#7219/#7228) sharing the same race-proven core, developed as a more affordable alternative for cost-conscious customers. This universal version offers additional mounting flexibility and dual fitment with the Civic EG/EK platform.
