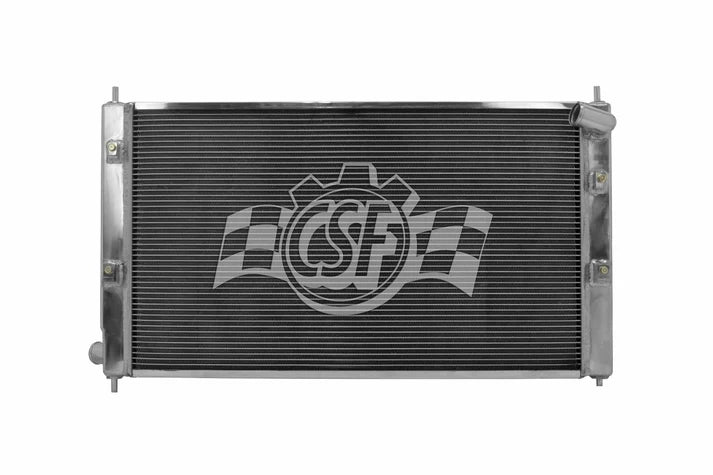

CSF Mitsubishi Evo X 2008-2015 High-Performance Radiator

CSF has over 5 decades of experience manufacturing radiators, so when it comes to keeping your engine cool and your Evo X running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high-horsepower builds and race vehicles needing added cooling performance in motorsport environments, and a genuine must-have for high-horsepower and high-boost Evo X vehicles specifically.

The 2-row, 42mm dual core uses CSF's exclusive B-Tube technology. Rather than a regular oval "O"-shaped tube, CSF uses a specially engineered tube shaped like a "B", carefully formed and brazed over the seam to seal. This increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, delivering the efficiency of two smaller tubes versus one large tube within the same space, and allows CSF to use thinner, lighter aluminium with better cooling efficiency, since this design is actually stronger than normal welded "O"-shaped tubes. High-efficiency, multi-louvered fins with a 6.5mm fin height are precisely aligned to maximise airflow through the core, with fin specifications carefully measured and wind-tunnel tested for this specific application. This part also carries more total cooling tubes than typical "performance" aluminium-tanked radiators, which are often little more than aluminium tanks bolted onto a traditional stock core. This is a true drop-in fit design requiring no modifications to install, with OE-style brackets all CNC machined and welded for genuine durability.

Works with: OEM mounting points and hose connections. Fits both manual and TC-SST automatic transmission.

Why Choose This Radiator

• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• Genuine drop-in fit for manual and TC-SST automatic transmission

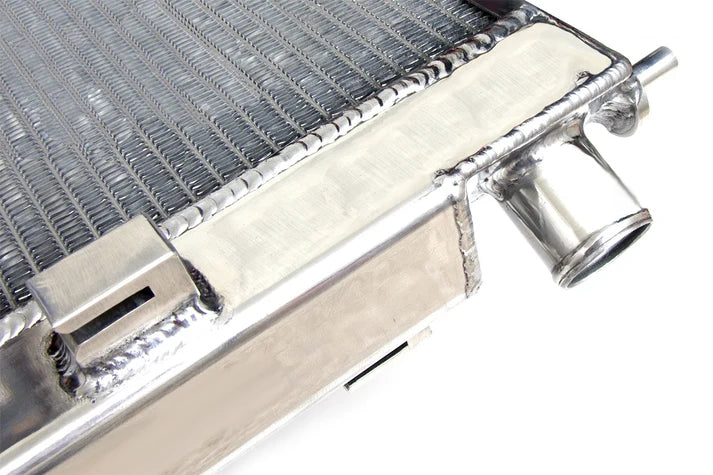

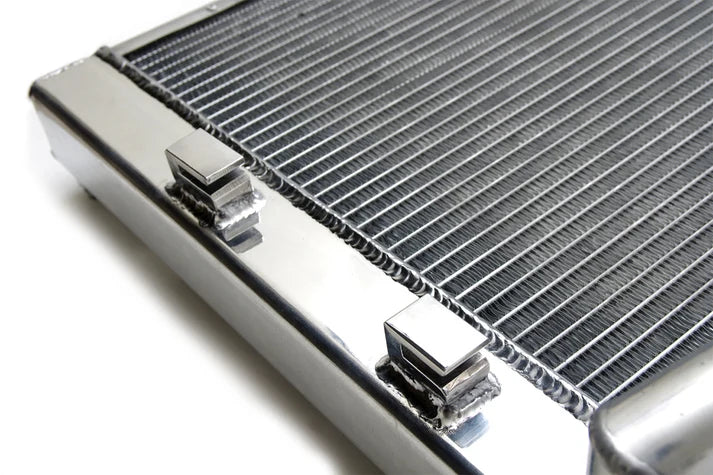

• CNC-machined, welded OE-style brackets for durable, precise fitment
• More total cooling tubes than typical budget "performance" aluminium radiators
• 100% all-aluminium, TIG-welded construction, a genuine upgrade over the factory design
• One-hour hand-polished mirror finish

Compatibility

• Mitsubishi Lancer Evolution X (2008-2015, 4B11T, GSR and MR models)
• Mitsubishi Lancer Ralliart (2008-2015, 4B11T)

Fits: Manual and TC-SST automatic transmission
