CSF Honda Civic (EK/EG) 1992-2000 K-SWAP High-Performance Radiator

K-swaps continue to evolve, and increasingly ambitious builds continue to sweep the Honda scene, so CSF went back to the drawing board to make their already popular K-swap radiator even more versatile. The result is this V3 design, engineered to be genuinely more universal and adjustable, fitting an even wider range of configurations for the most demanding K-swap setups.

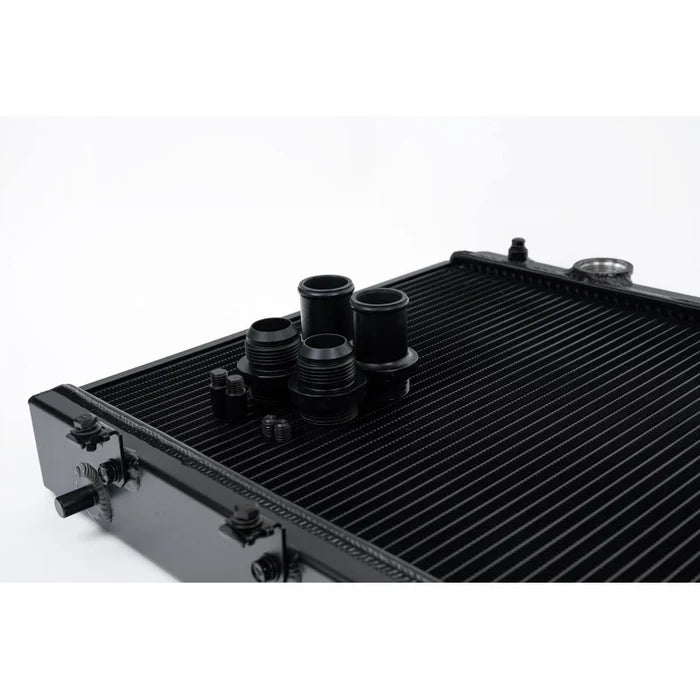

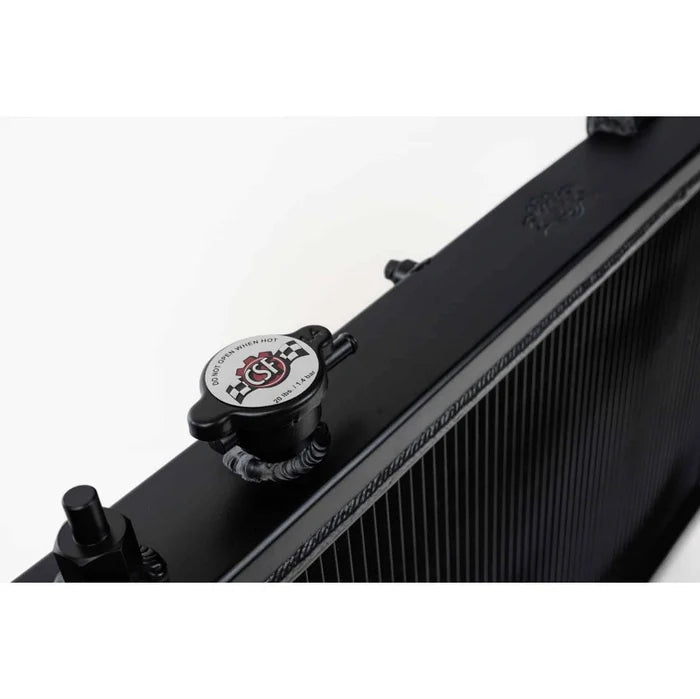

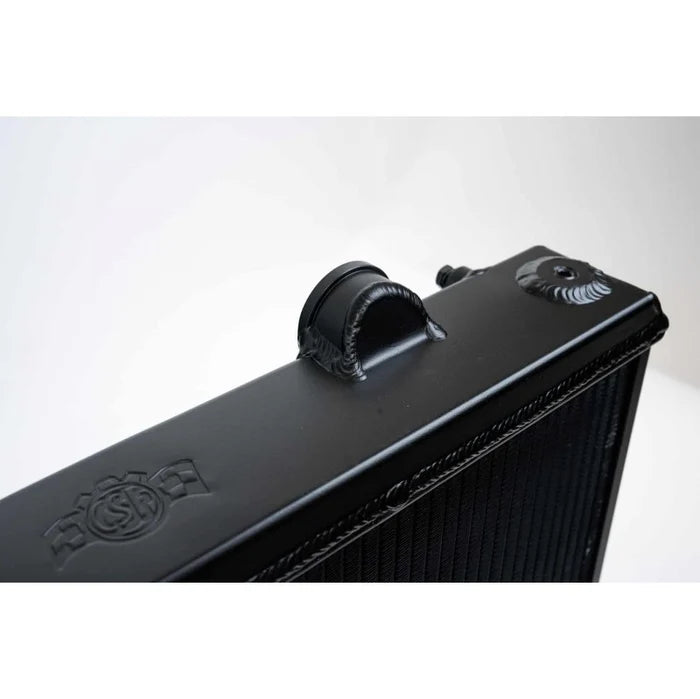

The 2-row, 42mm high-performance core uses CSF's exclusive B-Tube technology, paired with ultra-efficient 6.5mm tall multi-louvered fins for maximum surface area contact. Borrowed directly from CSF's tuck radiator line, an adjustable inlet/outlet design lets you run either -16 AN male fittings or OEM-style 1.25in slip-on hose connections, both included in the kit, making this the ideal choice for high-end setups wanting to run AN lines straight out of the box. A 3-way adjustable breather pipe lets the overflow exit left, right, or straight out to suit any overflow bottle location, and an updated filler neck design accommodates that breather pipe cleanly regardless of direction. The radiator includes both side mounting points and a billet centre mounting point for all EG and EK chassis, plus provisions to mount CSF's optional 12-inch SPAL fan and shroud kit (#2858F, sold separately) on the driver side. This is a true drop-in fit design requiring no modifications to install, with OE-style brackets all CNC machined and welded for genuine durability.

Works with: -16 AN male fittings or OEM-style 1.25in slip-on hose connections, both included. Compatible with CSF's optional 12-inch SPAL fan and shroud kit, sold separately. Fan not included with this radiator.

Why Choose This Radiator

• Adjustable inlet/outlet fittings, includes both -16 AN and OEM-style slip-on connections in the kit
• 3-way adjustable breather pipe, exits left, right, or straight out for any overflow bottle setup
• Side mounting points plus a billet centre mounting point for all EG and EK chassis
• CSF's exclusive B-Tube technology, approximately 15% more heat transfer than regular tubes
• Provisions for CSF's optional 12-inch SPAL fan and shroud kit, sold separately
• Genuinely built for the most ambitious K-swap builds, not just a basic replacement radiator

Compatibility

• Honda Civic EG (1992-1995, K-swap application)
• Honda Civic EK (1996-2000, K-swap application)
• Acura Integra DC (1994-2001, GS-R and Type R, K-swap application)

Fan not included. Pairs with CSF's optional 12-inch SPAL fan and shroud kit (#2858F), sold separately.

Part Number

• CSF #2850KB (Black), CSF #2850K (Polished)
