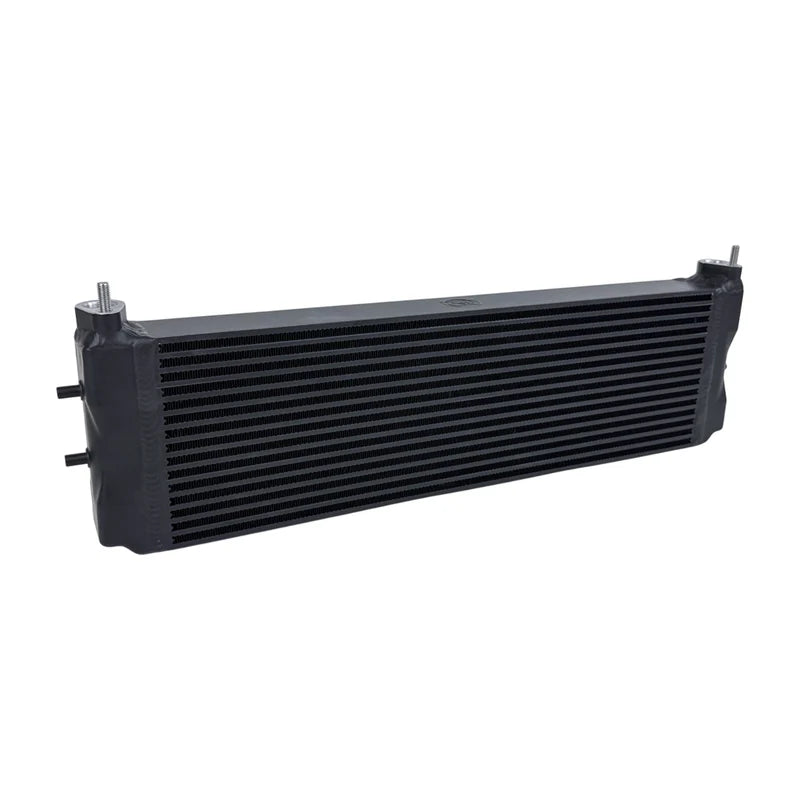

CSF High-Performance Engine Oil Cooler BMW M5 (G90/G99) / M8 (F91/F92/F93) / M5 F10 / M6 (F06/F12/F13)

Today, many M5s, M6s, and M8s are producing well over 1000hp - but with increased power comes increased heat, and BMW's factory oil cooler is a genuine weak point once you push past stock. Some owners report oil temperatures exceeding 115°C on hot track days, which isn't just a performance concern - sustained high oil temps can trigger limp mode and, in extreme cases, lead to catastrophic engine failure.

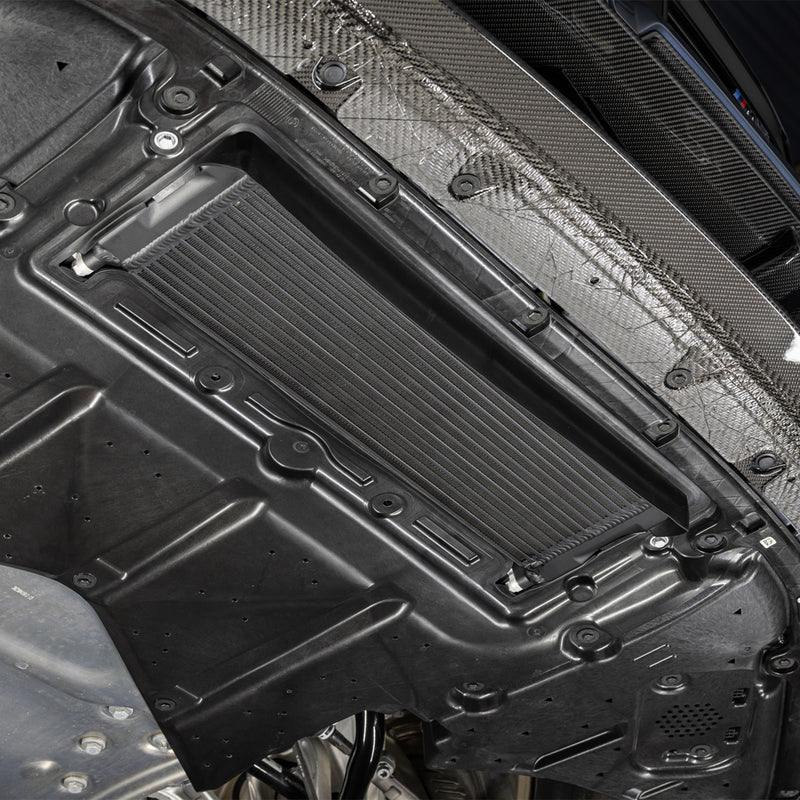

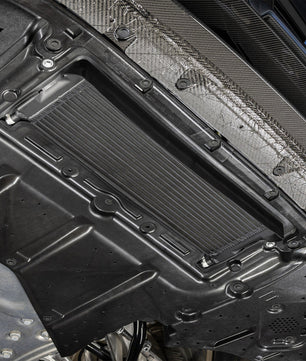

 Beyond the extra cooling capacity, this addresses a second, less obvious problem: the factory oil cooler sits in a genuinely vulnerable mounting position, and many F1X/F9X owners have been forced to replace it after leaks or impact damage - a problem that gets worse with lowered suspension setups. CSF's bar/plate design core is 33% larger (60mm) than stock, increasing oil capacity by 0.5 quarts (0.47L), with cast end tanks and 100% TIG-welded construction for genuinely rugged durability where the OEM all-metal design has known weak spots.

Works with: S63 and S68 twin-turbo V8 engines - true plug-and-play, drop-in fitment using OEM-style inlet/outlet connections.

Why Choose This Oil Cooler

• 33% larger 60mm core - increased oil capacity by 0.5 quarts (0.47L) over stock

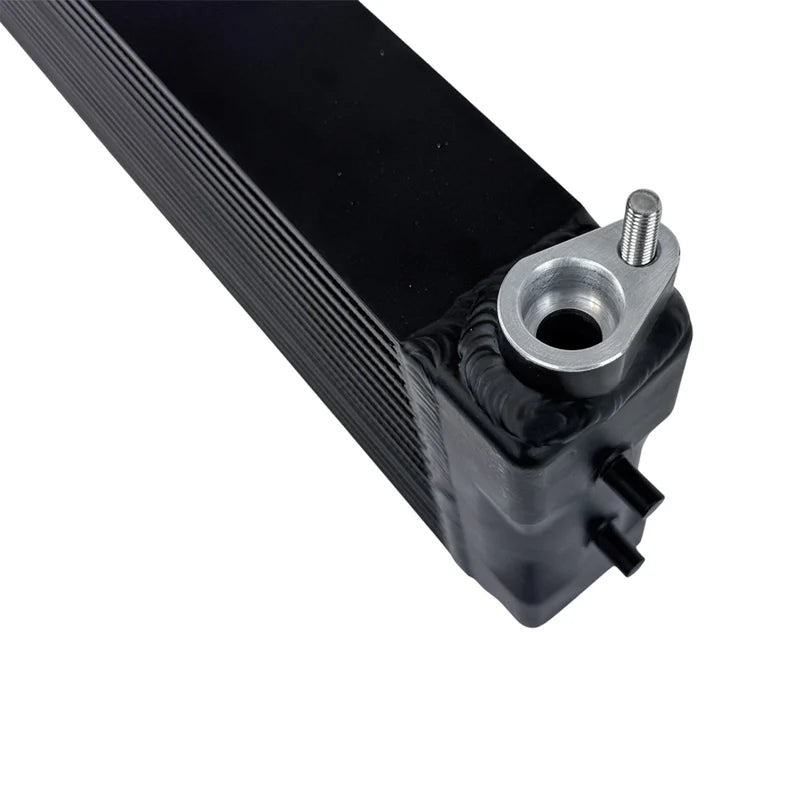

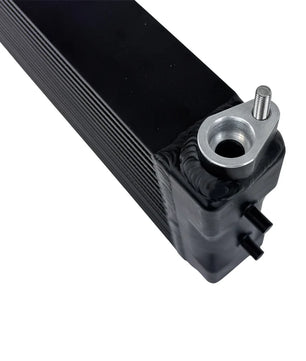

• Cast end tanks, 100% TIG-welded construction - genuinely rugged, addresses OEM weak points
• Developed with Carbahn Autoworks - built to handle S63 Stroker Kit heat loads and 1000+hp builds
• CNC-machined mounting brackets - more robust than the factory design, better protected in lowered setups
• Individually leak and pressure tested - every unit verified before shipping
• True plug-and-play drop-in fit - no permanent modification required

Compatibility

• BMW F10 M5 (2011-2016, S63)
• BMW F06/F12/F13 M6 (2012-2018, S63)
• BMW F90 M5 (2018-2024, S63)
• BMW F91/F92/F93 M8 (2019+, S63)
• BMW G15 M850i xDrive (S63)
• BMW G90/G99 M5 (2025+, S68)

Part Number

• CSF #8317, replaces OEM part numbers 17212284260 & 17228746756
