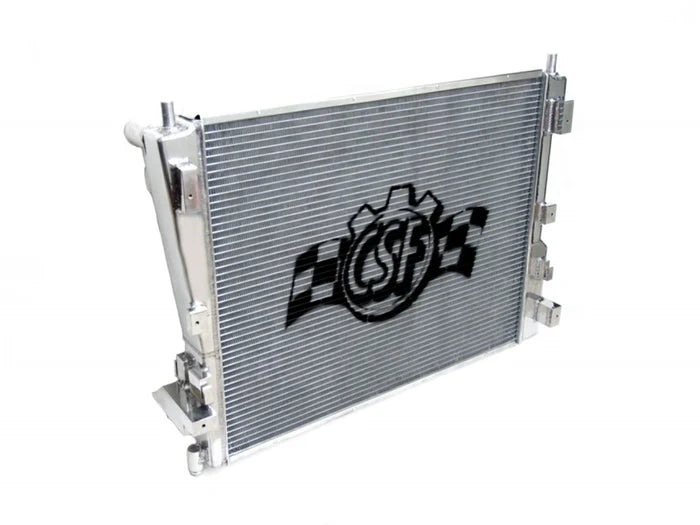

CSF Ford Mustang V6/V8 2005-2013 High-Performance Radiator

Designed to perform on the street or at the track, a performance radiator is a must-have for both high-horsepower builds and race vehicles needing added cooling performance in motorsport environments, and equally suited to drifting and drag racing.

The 2-row, 42mm core uses CSF's exclusive B-Tube technology. Rather than a regular oval "O"-shaped tube, CSF uses a specially engineered tube shaped like a "B", carefully formed and brazed over the seam to seal. This increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, delivering the efficiency of two smaller tubes versus one large tube within the same space, and allows CSF to use thinner, lighter aluminium with better cooling efficiency, since this design is actually stronger than normal welded "O"-shaped tubes, delivering genuine dual liquid laminar flow. Ultra-efficient, multi-louvered fins are carefully and precisely aligned to maximise airflow through the core, with fin specifications measured and calculated for this specific application and tested for maximum heat rejection efficiency in CSF's own wind-tunnel lab. This is a true drop-in fit requiring no modifications to install, with OE-style brackets all CNC machined and welded for genuine durability, and inlet/outlet connections designed to match the OE connections so you can reuse OEM or aftermarket hoses. It's also a genuine straightforward upgrade if you're simply replacing an ageing OEM plastic/aluminium radiator at end of life.

Works with: OEM mounting points and hose connections. Combo unit, fits both automatic and manual transmission.

Why Choose This Radiator

• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• Genuine AT & MT combo unit, one part covers both transmission types
• CNC-machined, welded OE-style brackets for durable, precise fitment
• Wind-tunnel tested multi-louvered fins for maximum heat rejection efficiency
• 100% all-aluminium construction, a genuine upgrade over the factory plastic/aluminium design
• True drop-in fit, no modifications required, reuses OE or aftermarket hoses

Compatibility

• Ford Mustang V6 (S197, 2005-2013, 3.7L/4.0L)
• Ford Mustang V8 (S197, 2005-2013, 4.6L/5.0L)
