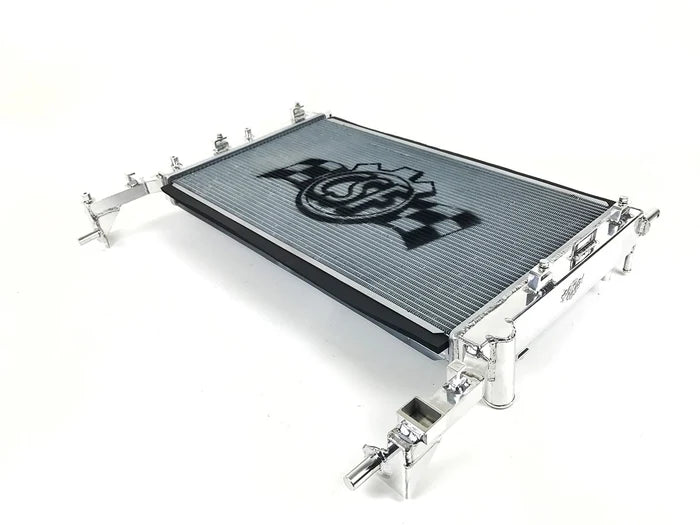

CSF Ford Mustang Ecoboost 2.3L 2015+ High-Performance Radiator

Designed to perform on the street or at the track, a performance radiator is a must-have for both high-horsepower builds and race vehicles needing added cooling performance in motorsport environments.

The 2-row, 42mm core uses CSF's exclusive B-Tube technology. Rather than a regular oval "O"-shaped tube, CSF uses a specially engineered tube shaped like a "B", carefully formed and brazed over the seam to seal. This increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, delivering the efficiency of two smaller tubes versus one large tube within the same space, and allows CSF to use thinner, lighter aluminium with better cooling efficiency, since this design is actually stronger than normal welded "O"-shaped tubes, delivering genuine dual liquid laminar flow. Ultra-efficient, multi-louvered fins with a 6.5mm fin height maximise surface area contact for optimal airflow, and CNC-machined brackets and quick-connect fittings ensure a superb, durable fit. Genuinely useful for tuned builds: this radiator's increased capacity helps counterbalance the added heat load when stacking an additional cooler in front of it, a common setup for aftermarket intercooler upgrades. This is a true drop-in fit requiring no modifications to install, accepting all attaching OEM components including quick-connect hoses and A/C condenser.

Works with: OEM mounting points and hose connections. Confirmed compatible with most aftermarket intercooler upgrades, though CSF cannot guarantee fitment with every aftermarket model.

Why Choose This Radiator

• CSF's exclusive B-Tube core technology, approximately 15% more heat transfer than regular tubes
• Genuinely useful for stacked cooling setups, helps offset the added heat load of aftermarket intercoolers
• CNC-machined brackets and quick-connect fittings for durable, precise fitment
• 100% all-aluminium, TIG-welded construction for genuine long-term strength
• True drop-in fit, no modifications required, reuses OE or aftermarket hoses
• Available in polished aluminium finish

Compatibility

• Ford Mustang EcoBoost (2015-2023, 2.3L Turbo 4-cylinder)

Also available: CSF's matching High-Performance Radiator (#7073) for the 5.0L V8 GT Mustang, sold separately, sharing the same core technology.
