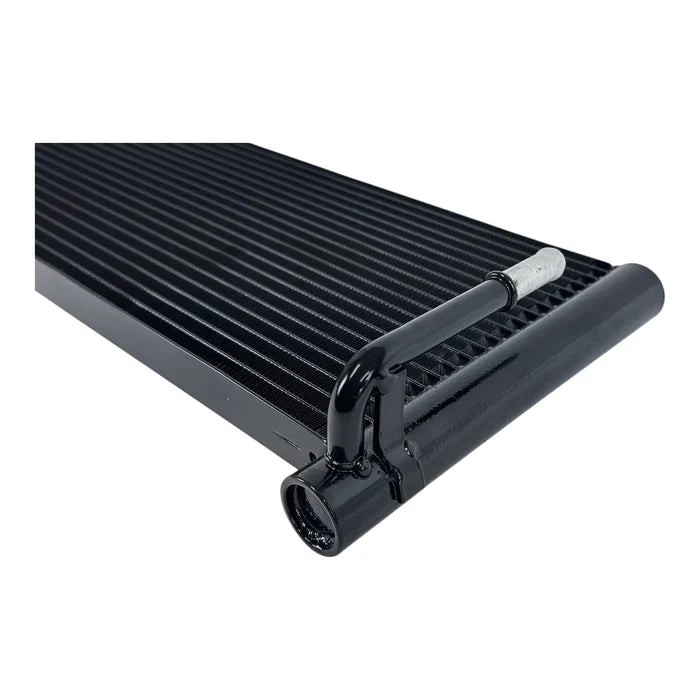

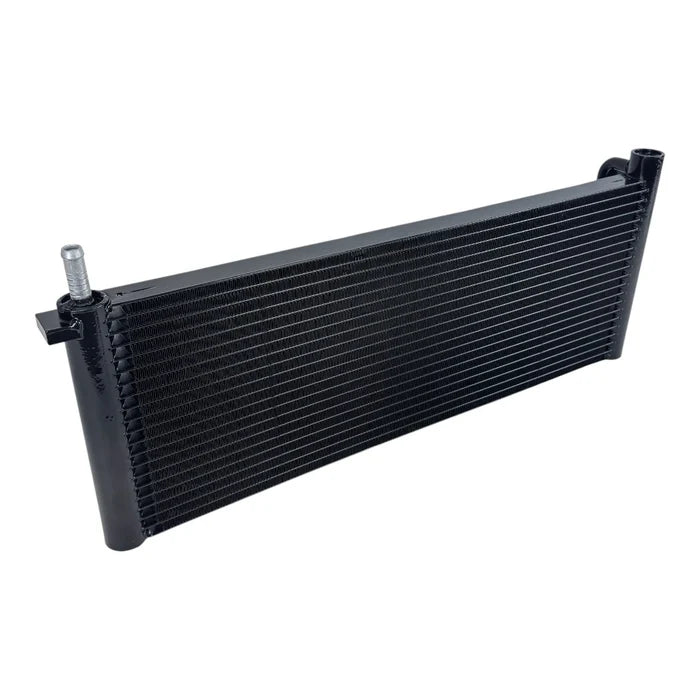

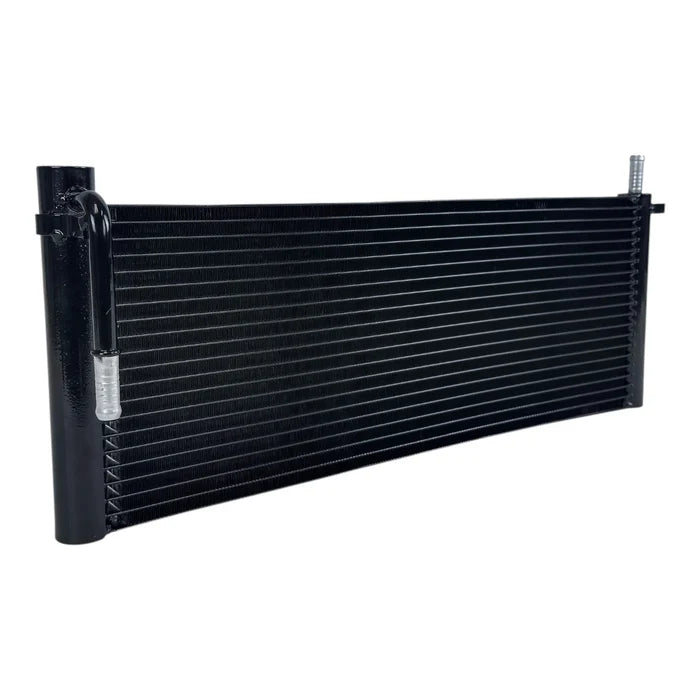

CSF Ford F-150 Raptor 6.2L V8 2010-2014 Transmission Oil Cooler

When pushing your F-150 or Raptor to its limits, transmission fluid temperatures can reach critical levels. Whether you're towing heavy loads or tackling off-road terrain, that extra heat compromises both performance and longevity, and the standard factory cooler comes with just 4 cooling tubes and 5 rows of 12mm cooling fins, with the tow package unit only adding 5 more tubes and 5 more fin rows. Even the larger tow-package cooler can't always keep up with hauling in adverse conditions or extreme off-roading, and this isn't just a concern for extreme off-roaders or heavy haulers either, even modest modifications like larger wheels and tires increase strain on your transmission.

CSF's replacement uses their AC condenser technology with a super-high-pressure, multi-channel microtube design, more than doubling even the tow-package cooler's specification with 19 individual cooling tubes and 20 rows of 8mm tall multi-louvered fins in a tube & fin core construction, delivering 30% more fluid capacity than the factory cooler. This maximises oil flow and surface area contact for outstanding, efficient heat transfer, extending transmission life by maintaining optimal fluid temperatures, improving towing capacity, and eliminating performance limitations during demanding driving. Welded all-aluminium construction with OEM-style inlet/outlet connections and laser-cut mounting brackets deliver a true drop-in fit requiring no modifications, finished in black for an OEM+ look, and the installation can typically be completed in about 15 minutes.

Works with: OEM mounting points and connections. Pairs with CSF's matching Heavy-Duty Radiator (#8094) for a complete cooling upgrade.

Why Choose This Transmission Oil Cooler

• 30% larger fluid capacity than the factory cooler, more than doubling even the tow-package unit's specification
• 19 individual cooling tubes and 20 rows of 8mm multi-louvered fins for maximum surface area contact
• Welded all-aluminium construction with OEM-style connections and laser-cut mounting brackets
• True drop-in fit, no modifications required, roughly a 15-minute installation
• Genuinely valuable even for modest modifications like larger wheels and tires, not just heavy towing
• 2-year limited warranty

Compatibility

• Ford F-150 Raptor Gen 1 (2010-2014, 6.2L V8)
• Ford F-150 (2011-2014, 6.2L V8/3.5L EcoBoost/3.7L V6/5.0L V8)
• Ford F-150 (2009-2010, 5.4L V8/4.6L V8)
• Ford Expedition (2007-2014, 5.4L V8)
• Lincoln Navigator (2007-2014, 5.4L V8, and 2015-2017, 3.5L EcoBoost)

Also available: CSF's matching Heavy-Duty Radiator (#8094) for this same platform, sold separately, for a complete cooling system overhaul.

Part Number

• CSF #8101, replaces OEM part numbers DL3Z-7A095-A and 7L1Z-7A095-B
