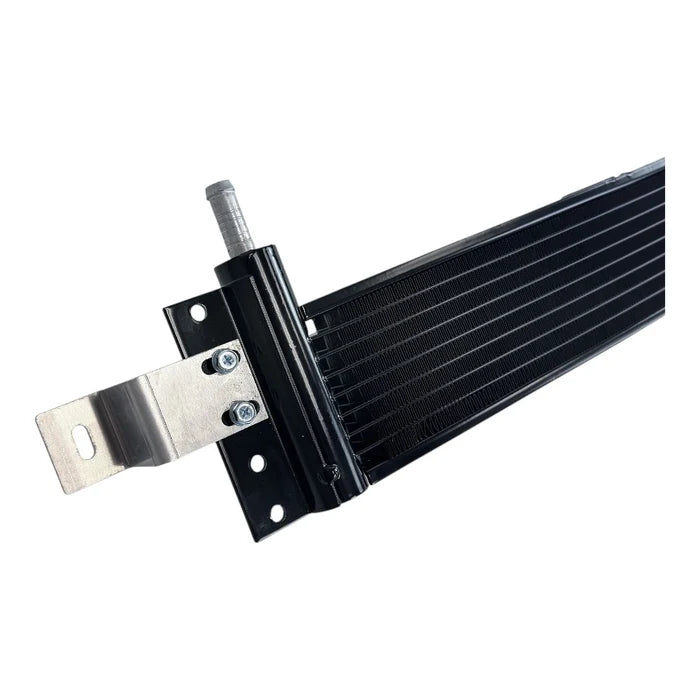

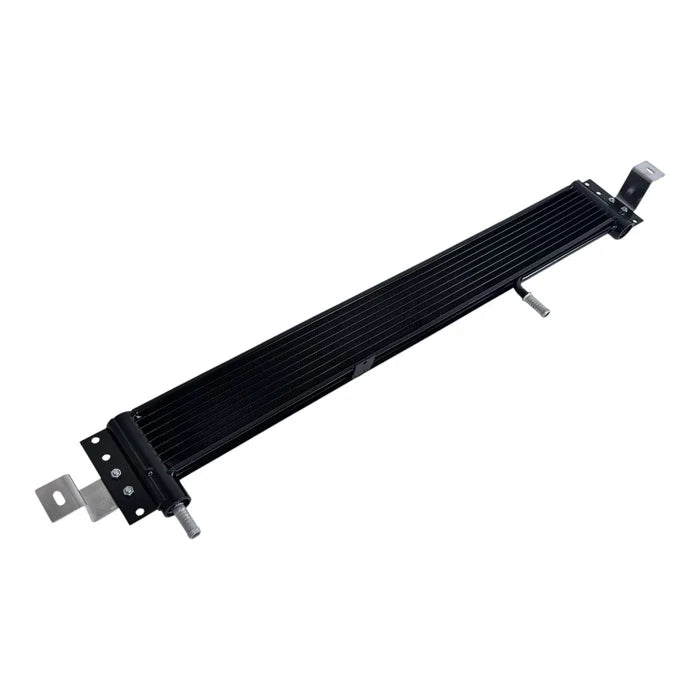

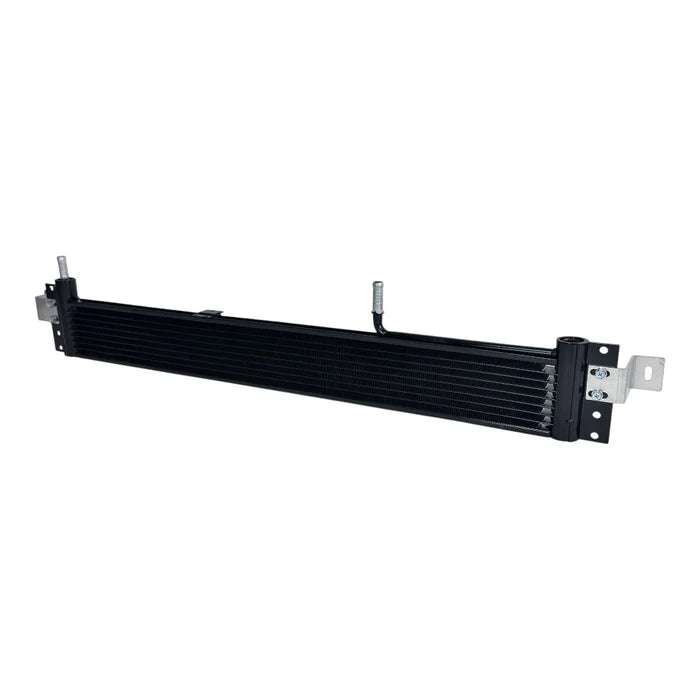

CSF Ford F-150 Raptor 3.5L V6 EcoBoost 2017-2025 Transmission Oil Cooler

The 13th and 14th generation F-150s received what many would consider undersized transmission oil coolers, and some models like the Raptor even have a second stack-style cooler to try to improve cooling performance. Sadly, this setup still comes up short for many owners, when transmission fluid temperatures spike under heavy towing or intense off-road use, performance and longevity suffer.

CSF's replacement uses their AC condenser technology with a super-high-pressure, multi-channel microtube design, paired with 8 rows of 8mm tall multi-louvered fins for exceptional cooling surface area and oil flow. This delivers 40% larger core dimensions than the OEM unit (3.7 x 29.2in versus the factory's 2.5 x 20.1in), genuinely outperforming even the dual-cooler configuration found on Raptor and other high-performance models. Welded all-aluminium construction with OEM-style inlet/outlet connections and laser-cut mounting brackets deliver a true drop-in fit requiring no modifications, finished in black for an OEM+ look.

Important fitment note: not all F-150s came equipped with a front-mounted transmission oil cooler from the factory. Visually verify, or check with a Ford dealer, that your specific vehicle has either OEM part FL3Z-7A095-A or HL3Z-7A095-A (you should be able to see the cooler and mounting cradle behind the front grille). If your F-150 instead has the transmission-mounted cooler (OEM part ML3Z-7869-C, found on some 2018 models), this cooler will not fit without modification, retrofitting would require running new ATF lines to the front of the truck first.

Why Choose This Transmission Oil Cooler

• 40% larger core dimensions than the OEM unit
• Outperforms even the dual-cooler configuration on Raptor and high-performance models
• 8 rows of 8mm tall multi-louvered fins for exceptional surface area and oil flow
• Welded all-aluminium construction with OEM-style connections and laser-cut mounting brackets
• True drop-in fit for correctly-equipped trucks, no modifications required
• 2-year limited warranty

Compatibility

• Ford F-150 Raptor (2017-2020, 3.5L V6 EcoBoost)
• Ford F-150 Raptor (2021-2025, 3.5L V6 EcoBoost)
• Ford F-150 (2015-2020, 2.7L/3.5L EcoBoost/5.0L V8)
• Ford F-150 (2021-2025, 2.7L/3.5L EcoBoost/5.0L V8)

Requires: factory front-mounted transmission oil cooler (OEM FL3Z-7A095-A or HL3Z-7A095-A). Not compatible without modification on trucks equipped with the transmission-mounted cooler (OEM ML3Z-7869-C).

Part Number

• CSF #8102, replaces OEM part numbers FL3Z-7A095-A and HL3Z-7A095-A
