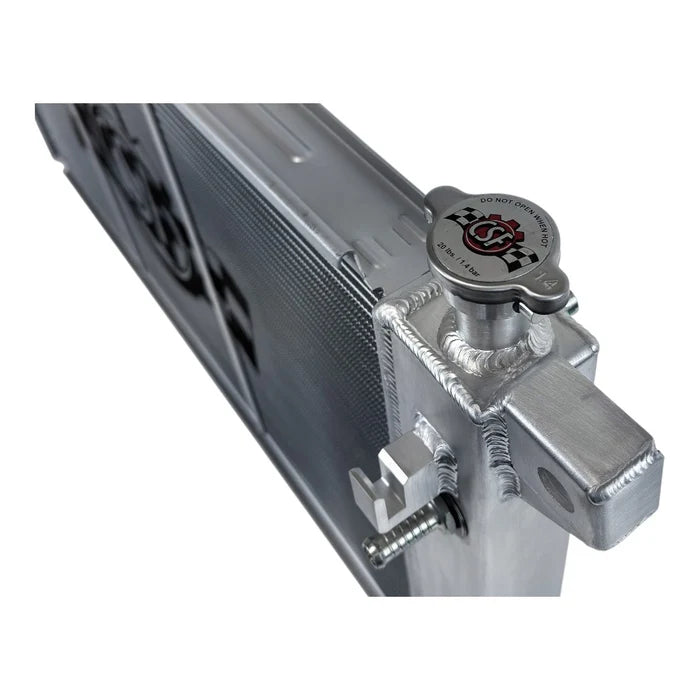

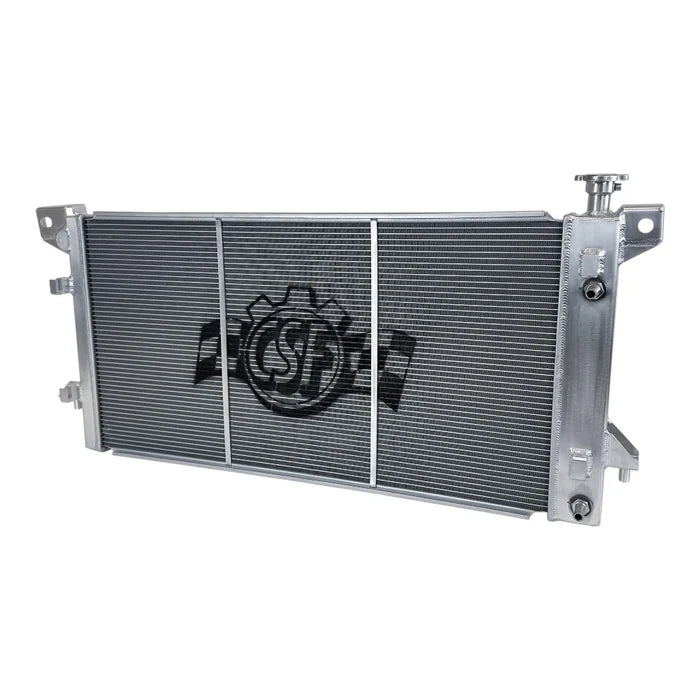

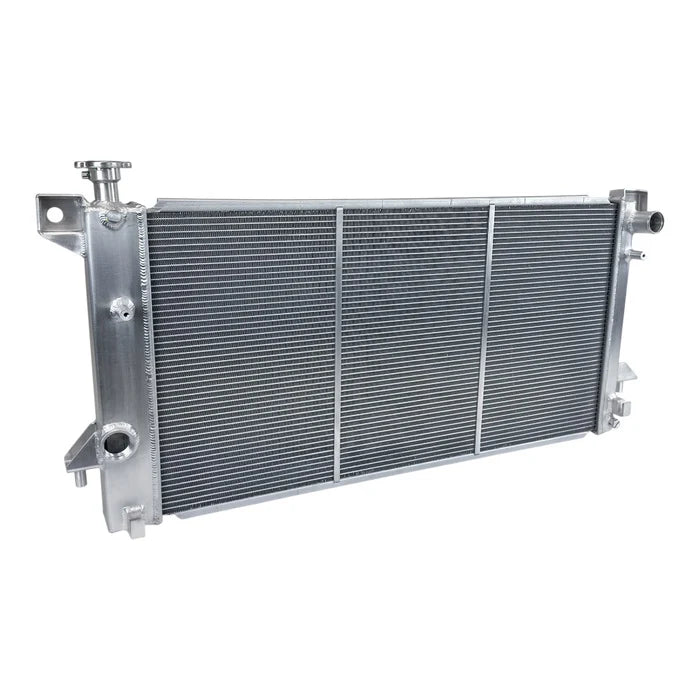

CSF Ford F-150 Raptor 2010-2014 High-Performance Radiator

The factory radiators for the 12th Gen F-150 and 1st Gen Raptor were ample for daily driving and light towing, but even the larger radiator fitted to trucks with the Super Cooling Package can't always keep up with hauling in adverse conditions or extreme off-roading. It's not just high-horsepower builds or hardcore off-roaders who need better cooling either, overlanders, campers, and weekend adventurers often add significant weight and drag through roof-mounted tents, spare tires, fuel cans, and oversized tires, all increasing load on both the engine and transmission.

The standard factory radiator uses a 1-row, 22mm (32mm on Raptor) core with a plastic end-tank design. CSF's replacement steps up to a 2-row, 42mm core, delivering a genuine 30-90% larger core volume than the factory radiator depending on the exact model. This increases fluid capacity and greatly improves heat dissipation, and CSF's exclusive B-Tube technology adds a further approximately 15% improvement in heat transfer over regular oval welded tubes. Ultra-efficient, 6.5mm tall multi-louvered fins maximise airflow through the core, and 100% TIG-welded aluminium construction replaces the factory's crimped plastic end tanks entirely. Core straps add genuine strength and rigidity for extreme reliability in demanding conditions. The result is a dramatic temperature reduction under all driving conditions, and the radiator is designed to work seamlessly with factory or aftermarket transmission coolers, intercoolers, and other cooling components.

Works with: OEM mounting location. Designed to work seamlessly with factory or aftermarket transmission coolers and intercoolers.

Why Choose This Radiator

• 30-90% larger core volume than the factory radiator, depending on model
• 2-row, 42mm core versus the factory's 1-row, 22mm/32mm design
• 100% TIG-welded aluminium construction, replacing the factory's crimped plastic end tanks
• CSF's exclusive B-Tube technology, approximately 15% more heat transfer than regular tubes
• Core straps for genuine strength and added rigidity in demanding conditions
• Perfect for daily driving, towing, and off-road adventures, not just high-horsepower builds

Compatibility

• Ford F-150 (2010-2014, 5.0L/3.7L/3.5L)
• Ford F-150 Raptor Gen 1 (2010-2014, 6.2L)

Also available: CSF's matching High-Performance Transmission Oil Cooler (#8101), sold separately, using AC condenser technology with a 1-row, super-high-pressure 26mm, 10-channel microtube design for dramatic temperature reduction.

Part Number

• CSF #8094, replaces OEM part numbers CL3Z-8005-A, CL3Z-8005-B, CL3Z-8005-C
