CSF Classic & Small Chassis Audi 5-Cylinder High-Performance Radiator

Through conversations with well-known figures in car culture, several of them avid classic Audi enthusiasts, it came to CSF's attention that there simply weren't any high-quality performance radiators available for many classic Audi 5-cylinder models, including the B2, B3, B4, and Ur Quattro. Making things worse, the OEM radiator is no longer available at all for the highly sought-after B4 S2/RS2. Until now, owners of these cars were stuck choosing between hard-to-find OEM units, budget-quality aftermarket replicas, or poorly designed aluminium alternatives.

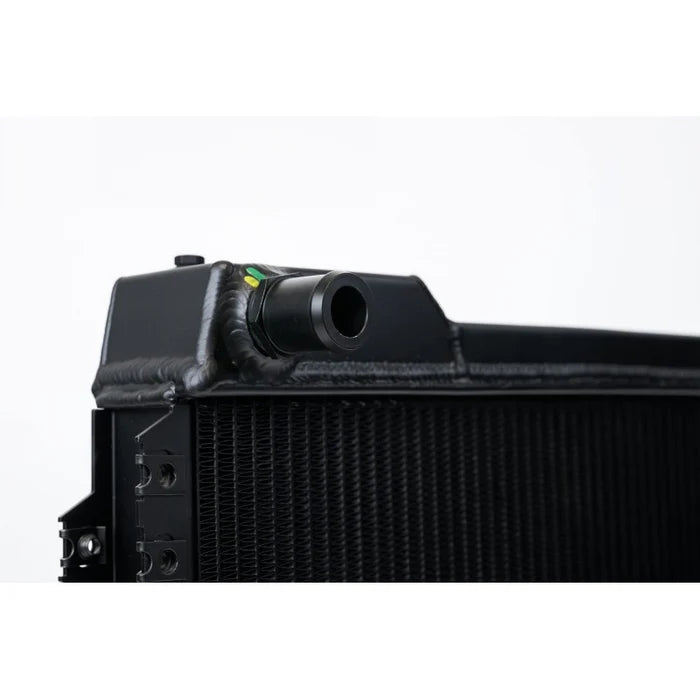

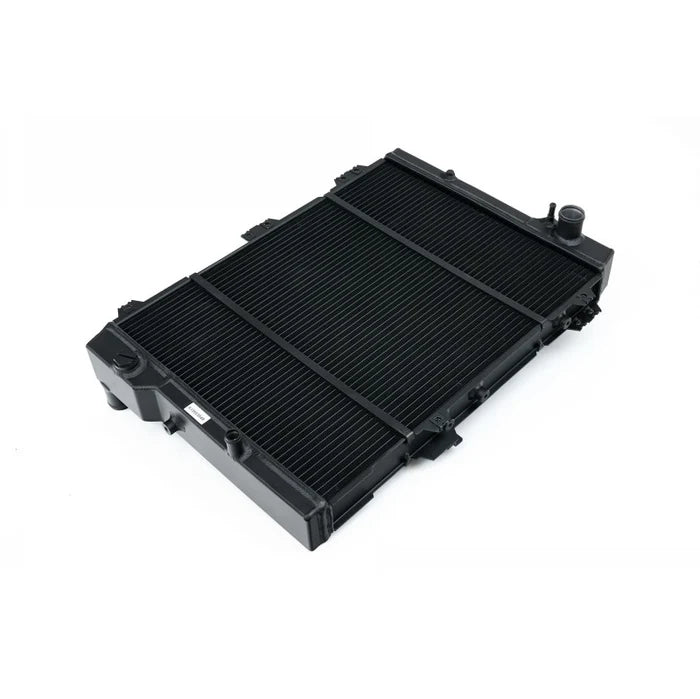

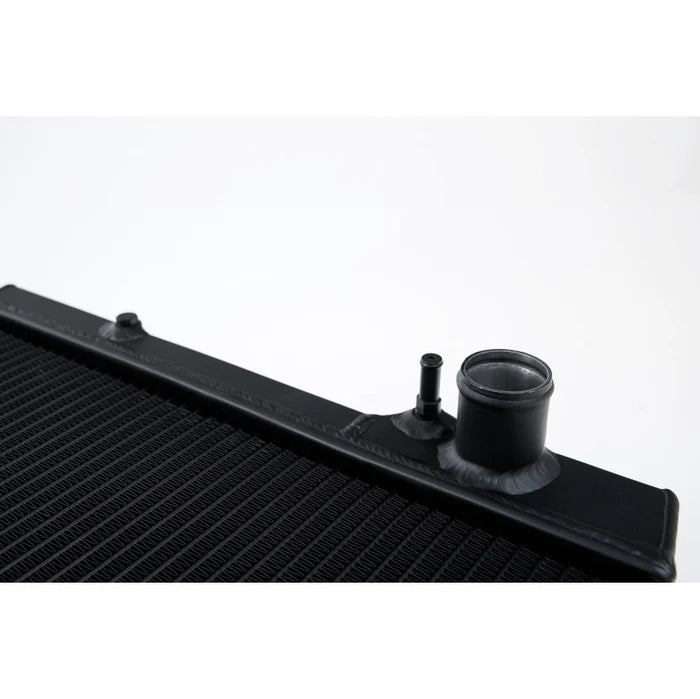

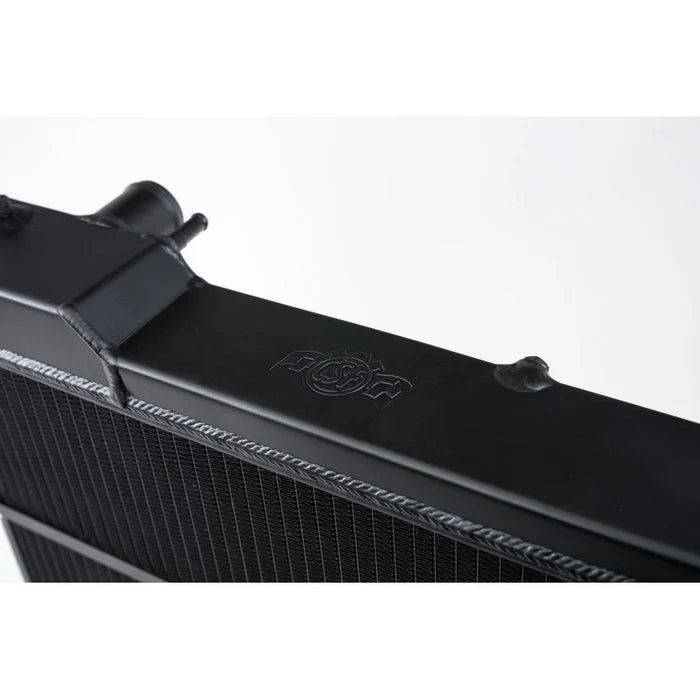

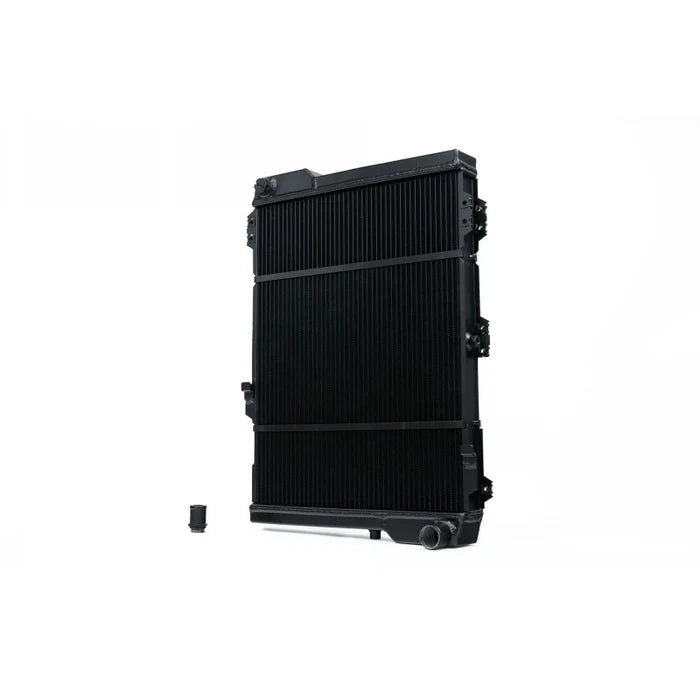

CSF partnered with specialists in classic Volkswagen and Audi vehicles to develop a genuinely modular design that fits the widest possible variety of platforms from this era. The 2-row, 42mm aluminium core not only increases fluid capacity over the original brazed copper and brass design, but also improves the core's ability to dissipate heat, using CSF's exclusive B-Tube technology to increase heat transfer by approximately 15% over regular oval welded tubes. The radiator can be configured to work with or without an auxiliary front radiator and factory air conditioning, and multiple fan shroud mounting points allow factory fans from all applications to be mounted without modification. The top end tank includes multiple overflow pipe connection points to suit factory configuration across every covered application, and the core is reinforced with additional straps for genuine strength and rigidity. CSF's thin, ultra-efficient core means the radiator mounts in the factory location using the original ducting, requiring no modifications or cutting, unlike other aftermarket aluminium radiators on the market that use a bulkier 3-row core and typically demand cutting to fit.

Works with: Factory ducting and mounting location. Configurable with or without auxiliary radiator and air conditioning connections.

Why Choose This Radiator

• Genuinely modular design, configurable for a wide range of classic Audi 5-cylinder applications
• Fills a real gap in the market, especially for the B4 S2/RS2, where OEM radiators are no longer available
• CSF's exclusive B-Tube technology, approximately 15% more heat transfer than regular tubes
• Multiple fan shroud and overflow connection points to suit factory configuration on all applications
• Thin, ultra-efficient core fits the factory location with original ducting, no cutting required
• Core reinforced with additional straps for genuine strength and rigidity

Compatibility

• Audi Ur Quattro
• Audi 4000 (B2)
• Audi 80/90 (B2/B3/B4)
• Audi S2/RS2 (B4)
• Audi Coupe (B2/B3)

Note: confirm your exact model, year, and configuration (with/without auxiliary radiator, with/without A/C) with your supplier, given the modular design and wide platform coverage.
