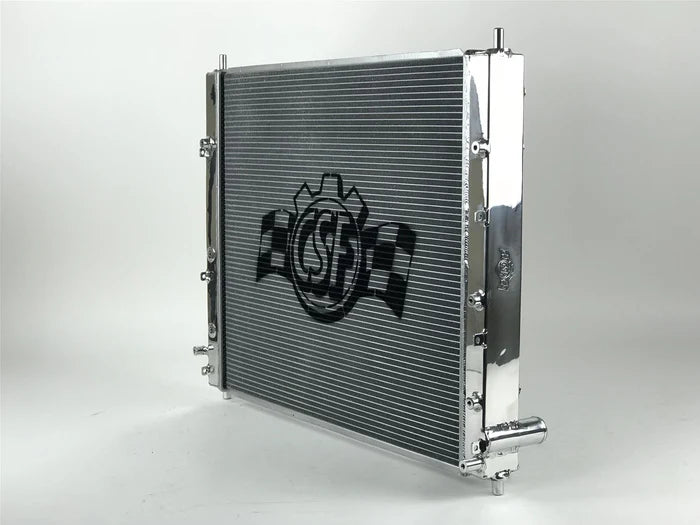

CSF Chevrolet C7 Corvette Stingray / Grand Sport / Z06 High-Performance Radiator

CSF has over 5 decades of experience manufacturing radiators, so when it comes to keeping your engine cool and your C7 Corvette running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high-horsepower builds and race vehicles needing added cooling performance in demanding motorsport environments.

The 2-row, 52mm core uses CSF's exclusive B-Tube technology, approximately 33% thicker than the stock C7 Stingray radiator. Rather than a regular oval "O"-shaped tube, a specially engineered "B"-shaped tube is carefully formed and brazed over the seam, increasing heat transfer surface area by approximately 15% over regular tubes while allowing for thinner, lighter aluminium construction that's genuinely stronger than a normal welded design, delivering true dual liquid laminar flow. An 8mm multi-louvered fin design maximises surface area contact, and CSF's unique triple-pass technology routes coolant through the core three times rather than just once, allowing ambient air to exchange heat with the coolant for three times longer and generating the lowest achievable outlet temperature. Tested on track in 100-degree Central California heat, coolant temperature on a C7 fitted with this radiator never exceeded 208°F. The radiator is designed with provisions for the OEM air guides, vents, surge tank, and fan assembly for a genuinely easy installation, with CNC-machined brackets and fittings, integrated all-aluminium race-style bleeder screws, and a one-hour mirror-finish hand polish.

Works with: OEM air guides, vents, surge tank, and fan assembly. True drop-in fit, no modifications required.

Why Choose This Radiator

• Genuine triple-pass flow structure, coolant crosses the core three times for the lowest outlet temperature
• 52mm core, approximately 33% thicker than the stock C7 Stingray radiator
• Track-tested in 100-degree heat, coolant never exceeded 208°F
• CSF's exclusive B-Tube technology, approximately 15% more heat transfer than regular tubes
• Designed with provisions for all OEM air guides, vents, surge tank, and fan assembly
• One-hour mirror-finish hand polish, individually leak and pressure tested

Compatibility

• Chevrolet C7 Corvette Stingray (2014-2019, LT1)
• Chevrolet C7 Corvette Grand Sport (2017-2019, LT1)
• Chevrolet C7 Corvette Z06 (2015-2019, LT4)
