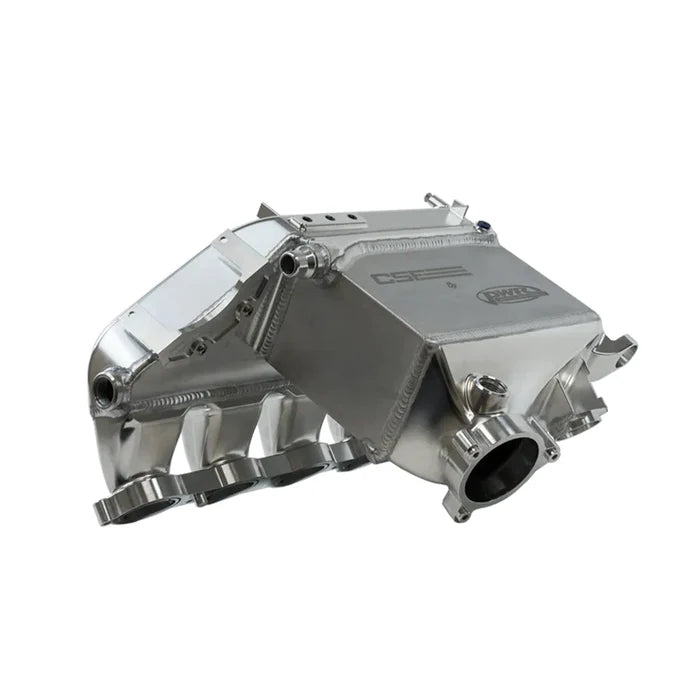

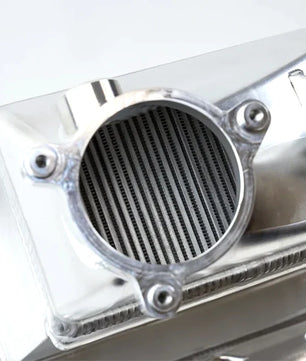

CSF BMW S58 M2/M3/M4 (G87/G80/G81/G82/G83) Charge Air Cooler Manifold

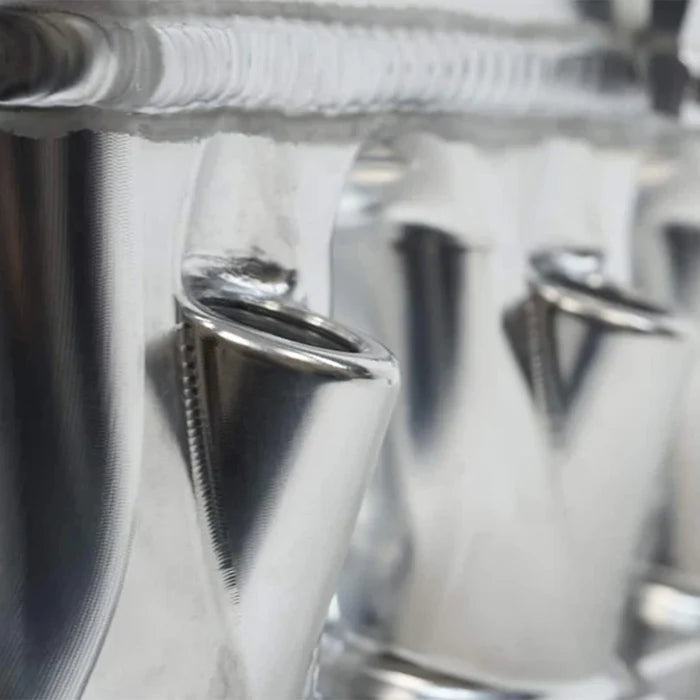

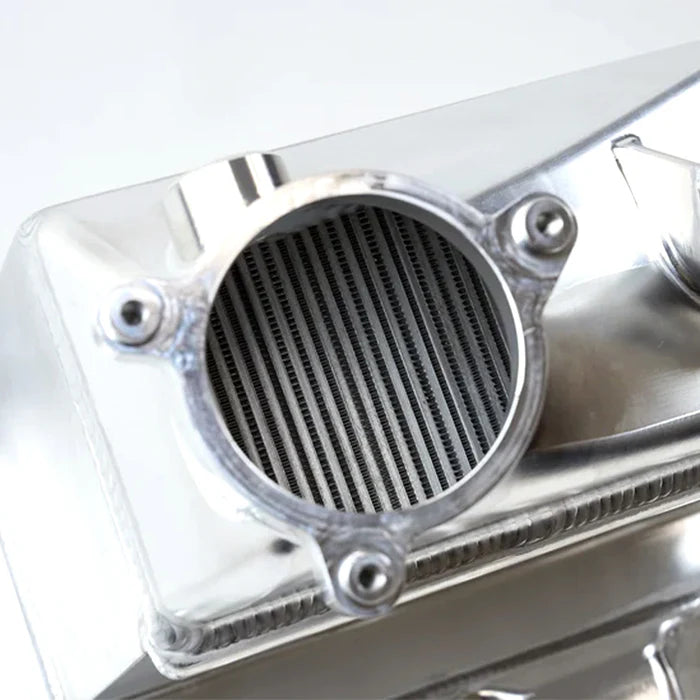

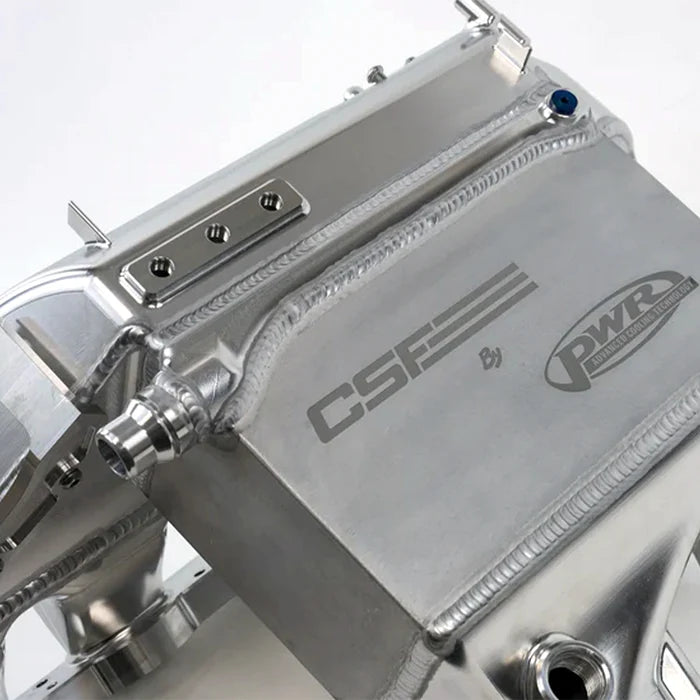

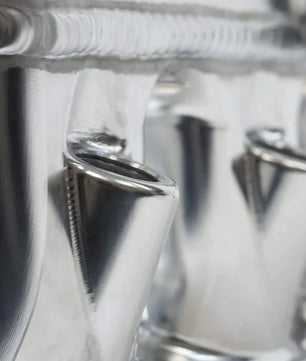

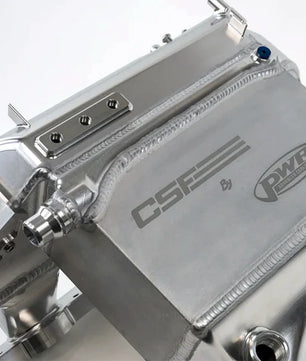

Feedback from the S58 community has revealed a genuine, well-documented weak point: the OEM charge-air-cooler core, crimped onto plastic end tanks, is prone to failure starting at just 27psi of boost pressure - a real limitation for anyone pushing power on this platform. CSF's "Level-Up" Charge-Air-Cooler Manifold replaces it entirely with a single-piece, CNC-machined and TIG-welded billet aluminium manifold built around an ultra-high-performance, motorsport-grade bar-and-plate core pressure tested to 120psi.

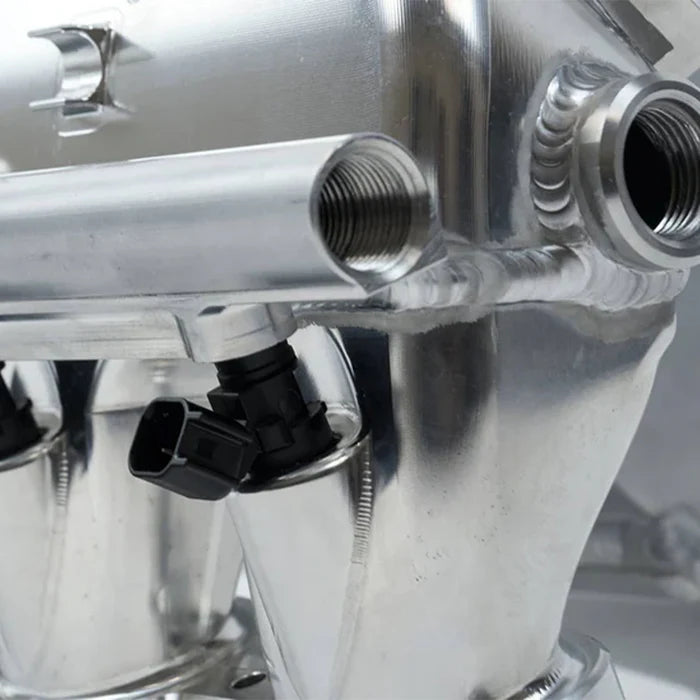

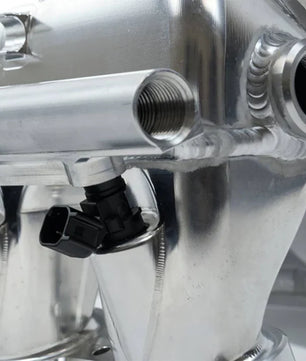

Independent dyno testing recorded a ~30°F (17°C) reduction in intake air temperatures compared to OEM, with faster IAT recovery and less pressure drop across the core - putting genuinely less stress on the turbo system and allowing more boost to be run safely at higher power targets. A top-feed port injection system comes included, with a fuel rail and CNC-machined block-off caps for those not using it yet, plus individual nitrous/methanol injection ports on each runner for maximum tuning control. A KIYLEX thermal rejection spacer - a polymer as strong as aluminium yet rated to withstand temperatures up to 1100°F - insulates the manifold from conductive heat transfer out of the cylinder head, further reducing IATs and combating heat soak. It's a true plug-and-play design requiring no modification to the vehicle.

Works with: Extreme boost applications - engineered specifically for builds pushing well beyond what the factory core can safely handle.

Why Choose This Manifold

• 120psi-rated bar-and-plate core - versus the OEM's crimped-tank design that's known to fail from 27psi
• ~30°F cooler intake air temperatures - independently dyno tested against OEM
• Single-piece CNC-machined, TIG-welded billet aluminium construction - genuine strength upgrade over factory plastic
• Integrated top-feed port injection system - fuel rail and block-off caps included
• Individual nitrous/methanol ports per runner - maximum tuning flexibility
• KIYLEX thermal rejection spacer included - insulates against cylinder head heat transfer

Compatibility

• BMW G87 M2 (S58)
• BMW G80 M3 Saloon (S58)
• BMW G81 M3 Touring (S58)
• BMW G82 M4 Coupe (S58)
• BMW G83 M4 Convertible (S58)
• BMW F97 X3M/F98 X4M (S58) - shares this manifold platform
