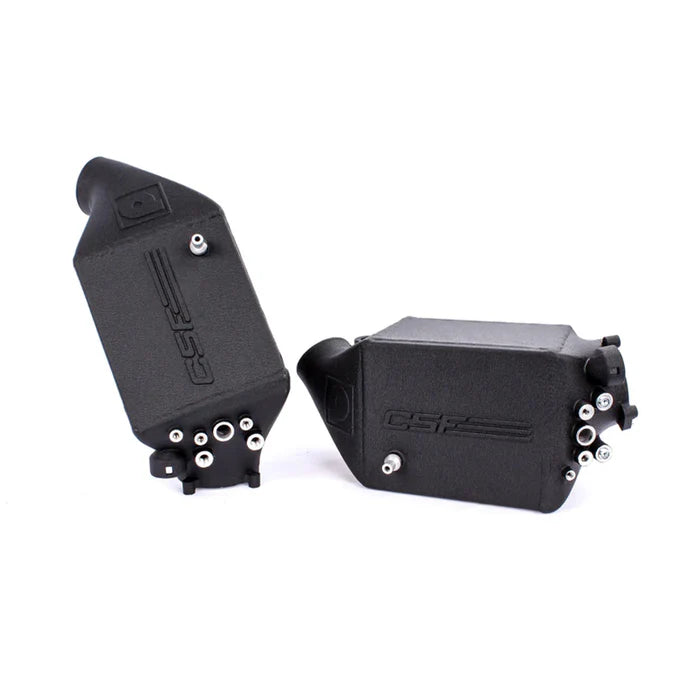

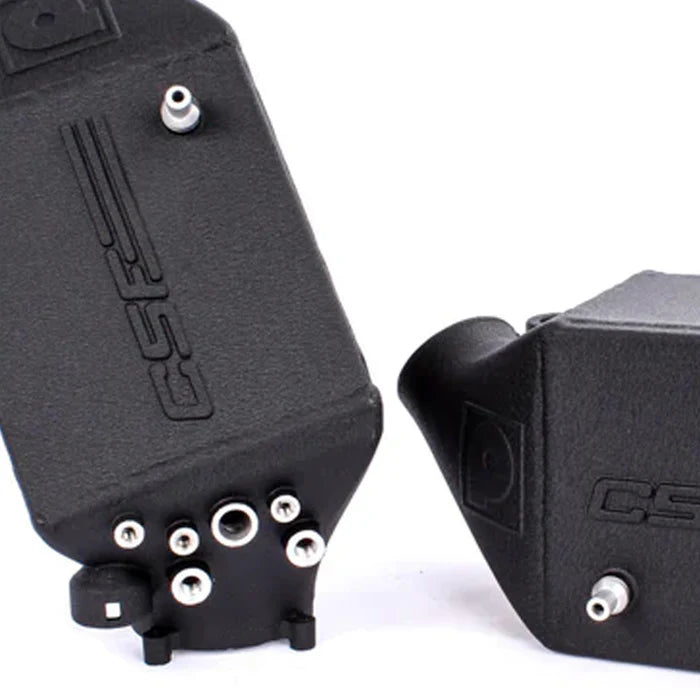

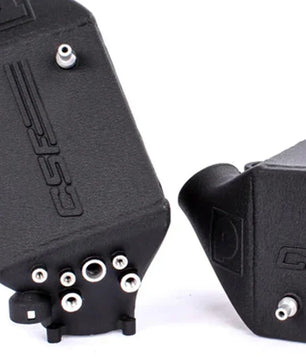

CSF BMW M5 (F10) / M6 (F06/F12/F13) Twin Charge Air Coolers

The S63 4.4L twin-turbo V8 responds incredibly well to bolt-on upgrades, larger turbos, and performance tuning - but pushing power on this platform quickly exposes a real limitation. Increased boost drives charge air temperatures past what the factory charge-air coolers can handle, resulting in dangerously high intake air temperatures that limit both power and reliability. CSF's Twin Charge Air Cooler Set was developed specifically to hold up to extreme boost levels while keeping IATs firmly in check - the world's first cast end tank design for this platform.

Using CFD analysis and testing, CSF built the largest charge-air-cooler that could physically fit in the factory location: a 28% increase in core size per side compared to the OEM units. The top/bottom, cross-flow, dual-pass core configuration delivers 2-stage water cooling for maximum efficiency and genuine intake temperature reduction, while cast aluminium end tanks with internal dividers create a design that's both more aerodynamic and considerably stronger than the OEM's construction. Designed using 3D scanning and rapid prototype technology for precise fitment, it installs as a true drop-in, plug-and-play upgrade with OEM-style quick-connect water connections and sensor ports.

Why Choose These Charge Air Coolers

• 28% larger core size per side - genuine increase in heat rejection capacity over OEM
• World's first cast end tank design for this platform - cast aluminium with internal dividers for strength and aerodynamics
• Top/bottom, cross-flow, dual-pass configuration - 2-stage water cooling for maximum efficiency
• 3D-scanned for precise OEM-style fitment - true drop-in, plug-and-play installation
• Built-in E85/methanol injection ports - genuine headroom for future power upgrades
• Recommended for upgraded and oversized turbo applications - engineered to handle extreme boost levels

Compatibility

• BMW F10 M5 (2011-2016, S63)
• BMW F06 M6 Gran Coupe (2012-2018, S63)
• BMW F12 M6 Convertible (2012-2018, S63)
• BMW F13 M6 Coupe (2012-2018, S63)

Finish Options

• Crinkle black powder coat (CSF #8109)
• Raw aluminium finish (CSF #8109R), with custom powder coating available on inquiry
