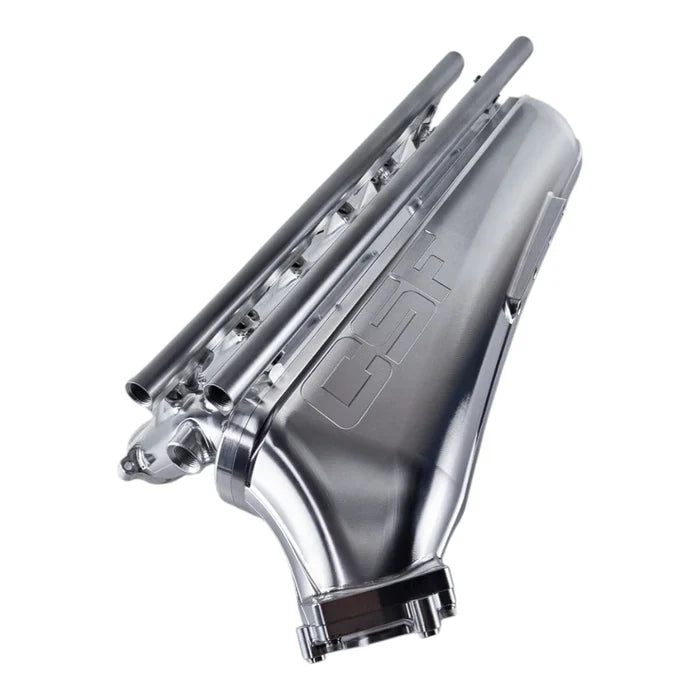

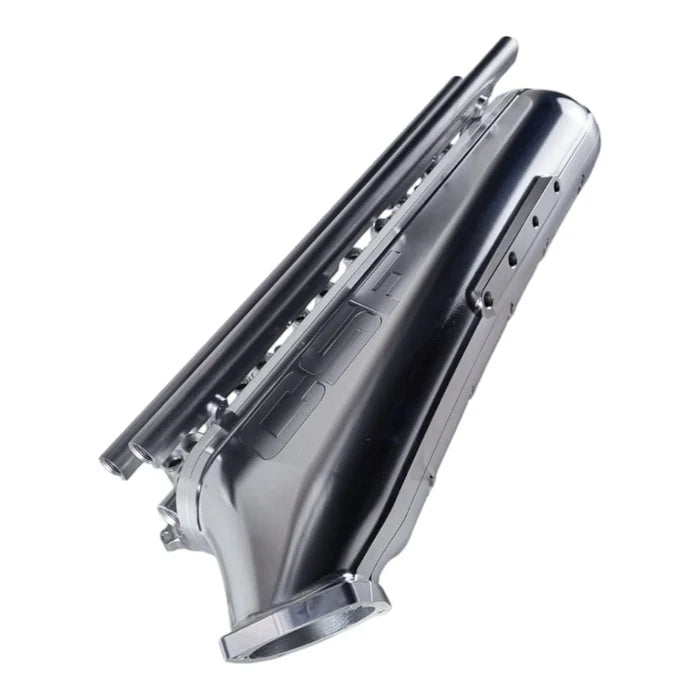

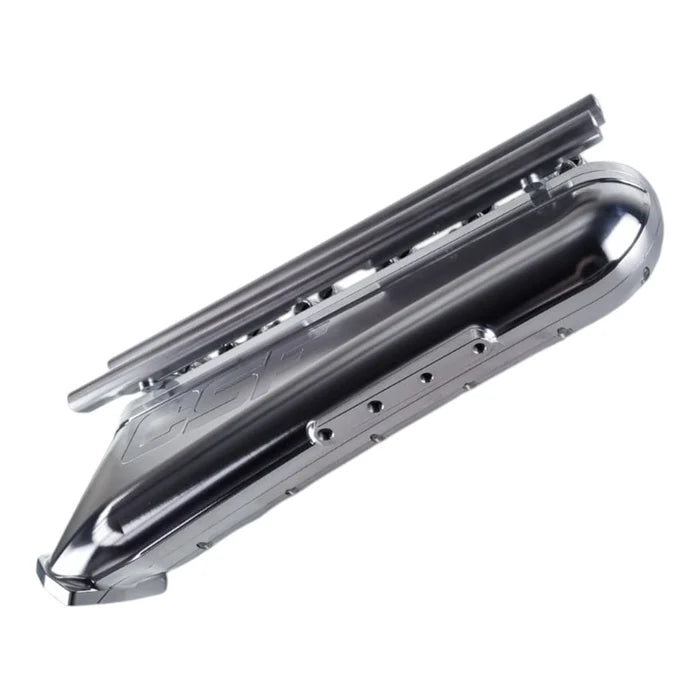

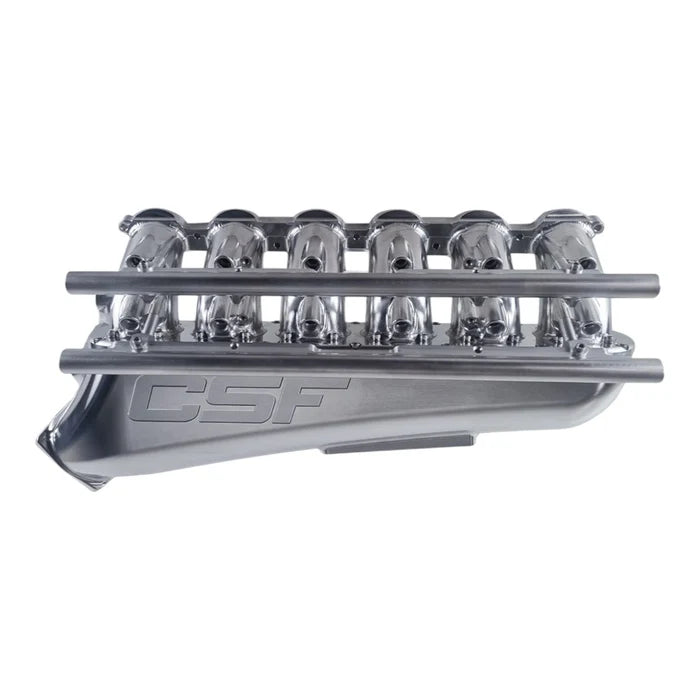

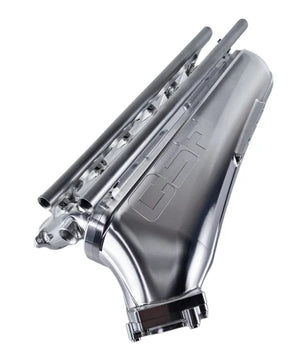

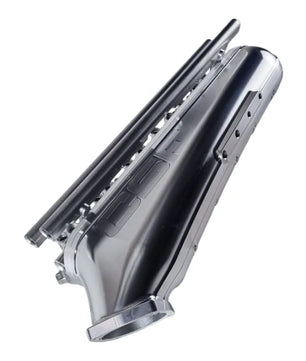

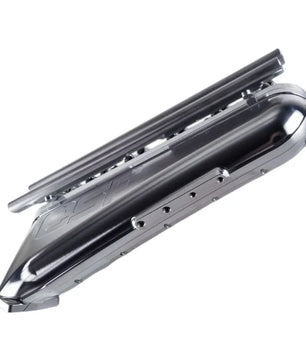

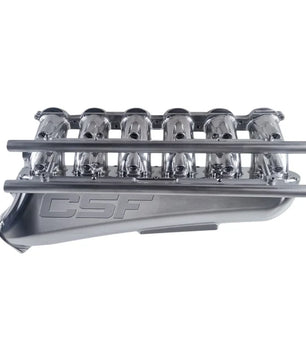

CSF BMW B58 "No Limit" Billet Air-to-Air Competition Manifold

Once B58 builds started pushing past the 1500whp ceiling, even the best drop-in intercooled manifolds hit a hard limit - the intercooler core built into the manifold itself simply couldn't get any bigger. CSF's "No Limit" Billet Air-to-Air Competition Manifold solves this at the root by removing the charge cooler from the manifold entirely, freeing up space for a genuinely much larger external intercooler core mounted at the front of the vehicle - compatible with either Air-to-Water or Air-to-Air setups, both proven at the highest levels of competition.

Fully CNC-machined from 6061 billet aluminium, the manifold features a CFD-optimised plenum and runner design with integrated velocity stacks for genuine airflow efficiency, plus a throttle body flange engineered to accept a larger 77mm S55 throttle body for maximum flow. Top-feed port injection is capable of running 6 or 12 injectors, with modular ports on each cylinder runner doubling as nitrous or methanol injection points, and two integrated sensor pads for additional parameters or vacuum sources. High-pressure O-ring sealed construction is rated to withstand over 100psi (7+ bar), and CSF's proprietary Thermal Rejection Manifold Spacer is proven to lower intake manifold temperatures by up to 15%. This isn't theoretical performance - at TX2K 2026, in ambient temperatures consistently over 90°F, three S58 vehicles running this manifold posted 7-second quarter-mile times, including a new "Fastest BMW in the World" record at 7.67 seconds/183mph, and the first-ever street-driven M2 to break into the 7s at 7.84 seconds/178mph.

Works with: External Air-to-Water or Air-to-Air intercooler setups - both configurations proven in competition. S58 version includes a billet oil filter housing adapter for filter access without manifold removal.

Why Choose This Manifold

• Removes the charge cooler restriction entirely - enables a much larger external intercooler core than any drop-in design allows
• Record-proven in competition - multiple 7-second quarter-mile runs at TX2K 2026, including a new world record
• Fully CNC-machined 6061 billet aluminium - built by a manufacturing partner with decades of experience on 2500+hp platforms
• 77mm S55 throttle body compatible flange - genuine flow headroom beyond stock throttle body limits
• Top-feed port injection for 6 or 12 injectors - plus modular nitrous/methanol ports per runner
• Thermal Rejection Manifold Spacer included - proven to lower intake manifold temperatures by up to 15%

Compatibility

• BMW B58 Gen 1 (F-Series M140i/M240i/340i/440i)
• BMW B58 Gen 2 (G-Series M240i/M340i/M440i)
• Toyota GR Supra A90/A91 (B58)

Finish Options

• Raw billet aluminium (standard)
• Custom finishes available (powder coat, Cerakote, or anodising)

What's Included

• Billet fuel rail for top-feed port injection (6-injector setup)
• 6 injector block-off plugs
• Hardware and installation kit with diagrams and bill of materials
