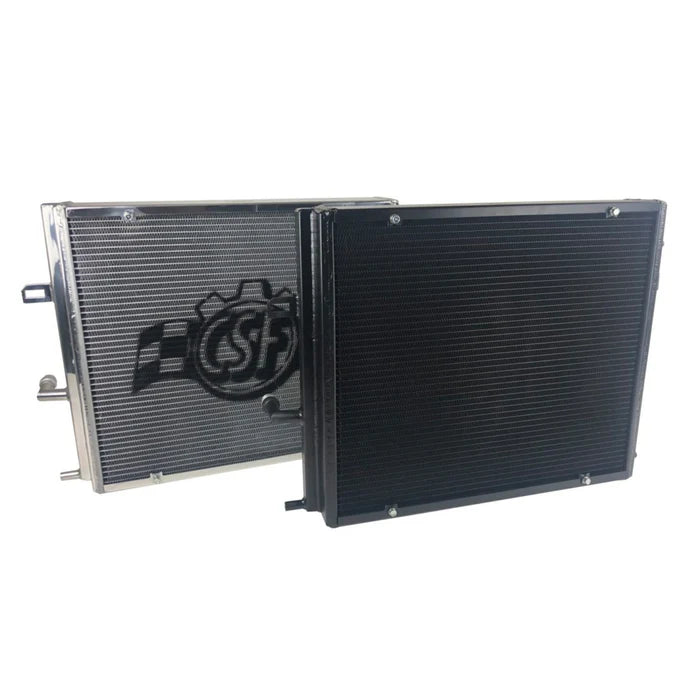

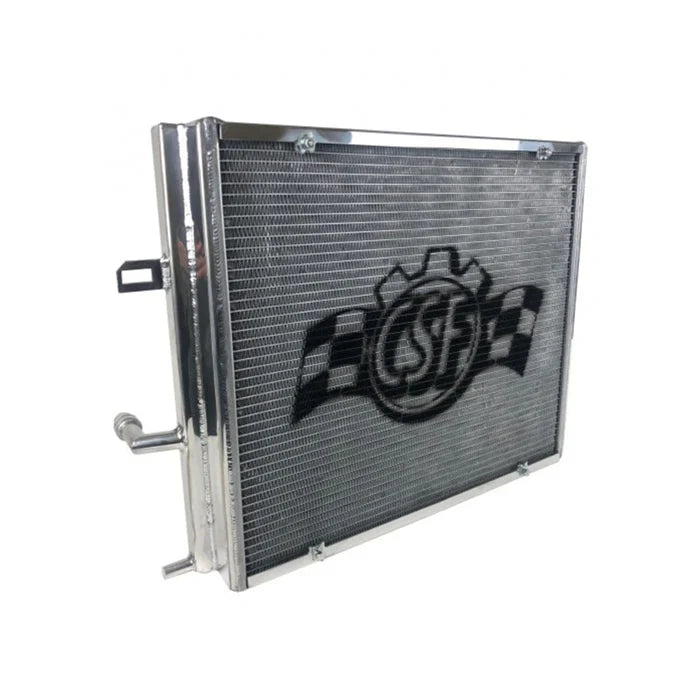

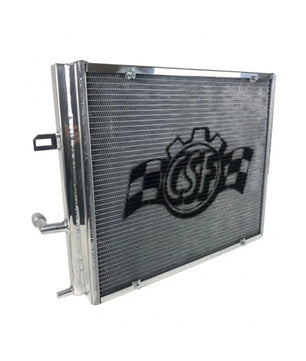

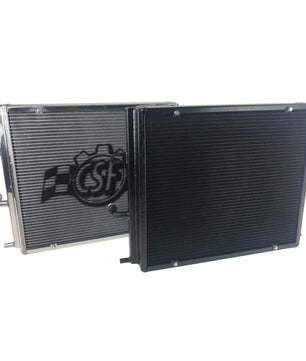

CSF BMW B58 Gen 1 (M140I/M240I/340I/440I) Triple Pass Front Mount Heat Exchanger

Unlike the S55, the B58's charge cooler is built directly into the plastic intake manifold housing - but it shares the same fundamental challenge: as boost increases, so does charge air temperature, and the factory water-to-air cooling system quickly starts to struggle. Data shows intake air temperatures climbing rapidly on the OEM heat exchanger through just one gear pull at wide-open throttle, robbing power and increasing the risk of knock as the ECU's safety protocols step in.

CSF's Triple-Pass Heat Exchanger tackles this at the source. The factory unit is a single-row core just 27mm thick - CSF's design uses the industry-exclusive world's largest 2-row core at 68mm, built with their B-Tube technology and 6.5mm multi-louvered fins. The defining feature is a unique triple-pass flow design: water travels through the core three times before exiting and returning to the manifold charge cooler, delivering the lowest possible outlet temperature - a genuine advantage over the OEM design and even more expensive aftermarket alternatives, all of which use a single-pass structure. The result is roughly 3x the cooling capacity of the OEM unit. An included detachable rock guard protects the core, and OEM CNC-machined mounting pins and brackets ensure a true plug-and-play fit.

Works with: OEM mounting location - direct plug-and-play installation, no modification required.

Why Choose This Heat Exchanger

• World's largest 2-row, 68mm core - versus the OEM's single-row, 27mm design
• Unique triple-pass flow design - roughly 3x the cooling capacity of the factory unit
• 6.5mm multi-louvered fins with B-Tube technology - maximised surface area and heat rejection

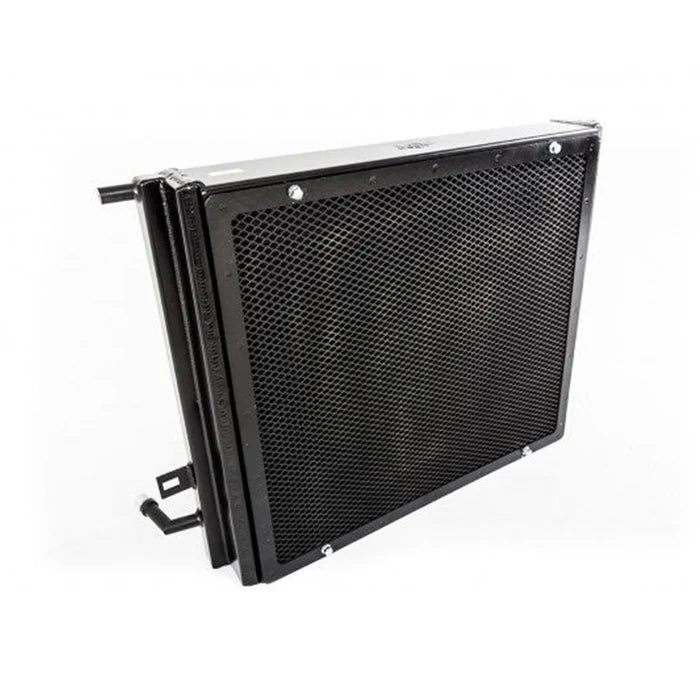

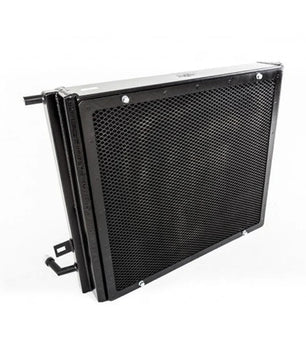

• Includes detachable rock guard - protects the core in this exposed front-mount position
• Direct plug-and-play fit - OEM CNC-machined mounting pins and brackets

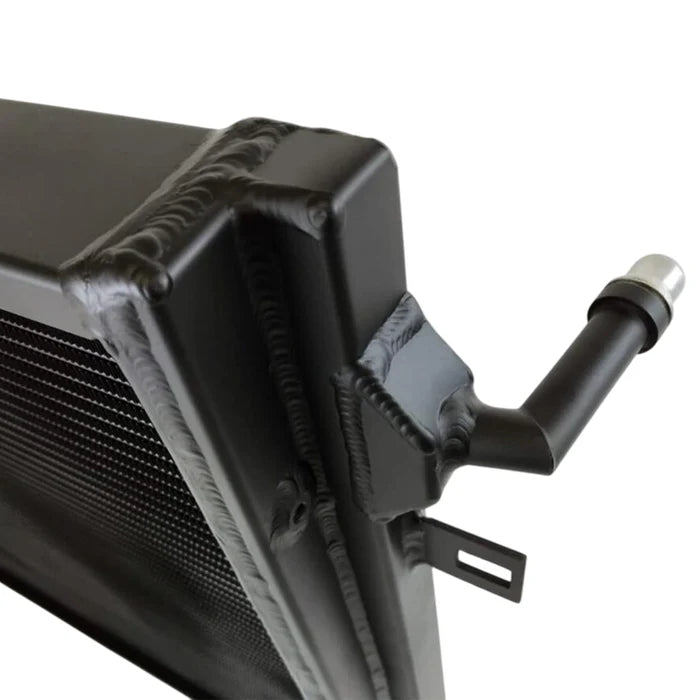

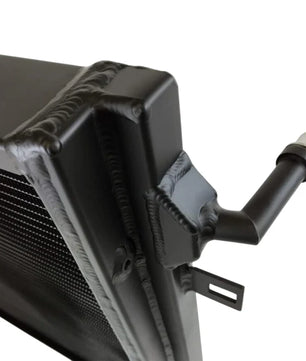

• Ongoing refinement - updated to "Version 2.0" spec with improved inlet/outlet design

Compatibility

• BMW F20/F21 M140i (B58 Gen 1)
• BMW F22/F23 M240i (B58 Gen 1)
• BMW F30/F31/F34 340i (B58 Gen 1)
• BMW F32/F33/F36 440i (B58 Gen 1)
